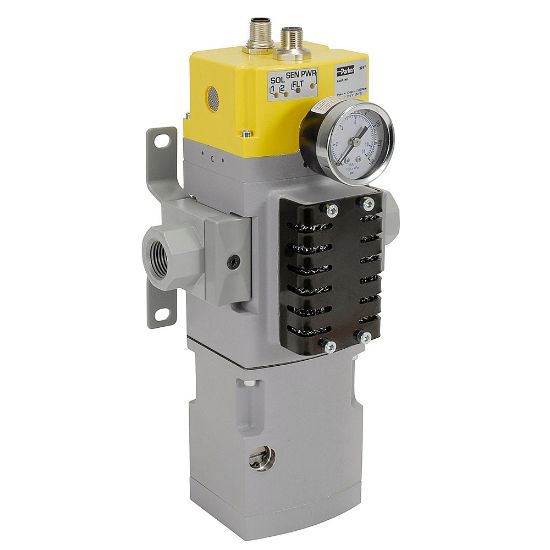

P33DB96AAEM - Global FRL Valves (Safety Exhaust)

The P33 Safety Exhaust valve is designed to safely remove trapped air from machinery bringing machinery to a safe state. This product is externally monitored and designed for two channel safety architecture up to Category 4, Performance level e.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	Backordered

SKU P33DB96AAEM

$1,479.82/each

Products specifications

Attribute name	Attribute value
UOM	EA	Sensor Connection	[A] - M12 pins: 1&2, 1&4, common 3
Solenoid Connection	[A] - M12 pins: 2 & 4 with common 3	Pressure Gauge	[EM] - MPS-P34 pressure sensor
Options	Black Grill	Product Style	[P33D] - Without Soft Start
Port Size	[6] - 3/4 inch	Port Type	[B9] - NPTF
Operating Temperature	4° to 50° °C	Maximum Operating Pressure	30 barg
Port Type	NPT<br>BSPP	Body Material	Cast Aluminum
Weight	1.9 kg	Product Style	Electro-Pneumatic (Solenoid Actuated)<br>Externally Monitored<br>Without Soft Start
Application	Pneumatic Safety Systems (up to Category 4 / performance level ‘e’)	Mounting Type	Inline / Stand-Alone or Modular Mount (on P32/P33 FRL)
Specifications Met	Category 4, Performance Level e per EN ISO 13849-1 (pending)	Flow Rate	up to 265 SCFM
Brand	Parker	Function	3/2 Normally-Closed
Product Type	Safety Exhaust Valve	Technology	Pneumatics
Electrical Connection	Two M12 connections	Input Voltage	24V DC
Length	10.93 cm	Port Size	3/4 inch
Industry	General Industry<br>Automotive<br>Packaging	Width	8 cm
Division	Pneumatic Division	Seal Material	NBR
Minimum Operating Pressure	10 psig	Height	7.03 inch
