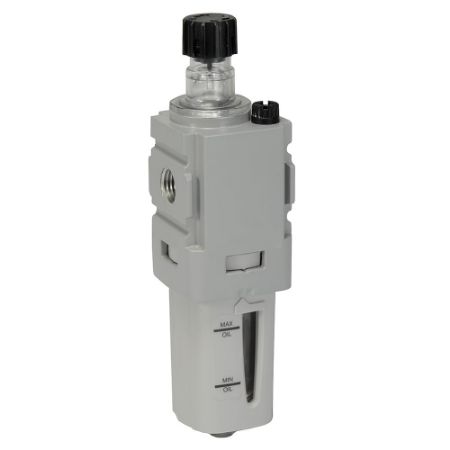

Global FRL Lubricators

The Global FRL Lubricators are available in (3) sizes: Miniature (P31L), Compact (P32L) and Standard (P33L).  These lubricators can be precisely adjusted to a very low oil flow rate because only a portion of the oil drops seen in the sight dome travels downstream. Proportional oil is delivered over a wide range of air flows and a precision needle valve assures repeatable oil delivery. A slight adjustment can provide a desired mist rate. With the various options available, the Global FRL Lubricators are easily configurable with other Global FRL products.

These units are ideal for low and high flow applications that demand uniform lubrication in a robust package. ISO/ASTM VG32 oil is suggested for lubrication and will allow the product to perform at peak performance. Do not use oils with additives, compounded oils containing solvents, graphite, detergents or synthetic oils.

Markets

•   Machine Tools

•   Misc. Industrial

•   Misc. Manufacturing

•   Air and Gas

•   Appliances

•   Factory Automation

•   Entertainment Automation

•   Molding

•   Packaging Machinery

•   Printing and Marking Equipment

•   Vehicle Assembly Facilities

•   Wearing Apparel

•   Food and Beverage

•   Misc. Processing

Features/Benefits

•   Integral ports (NPT, BSPP & BSPT): P31 - 1/4", P32 - 1/4", 3/8" & 1/2", P33 - 3/4", 1/2"

•   Robust but lightweight aluminium construction

•   Proportional oil delivery over a wide range of air flows

•   Fingertip ratchet control for precise oil drip rate adjustment

•   Ability to fill from top while under system pressure

Applications

•   To be used in combination with valves and cylinders

•   To protect tools and cylinder against corrosion

•   To reduce friction

•   At the transfer point from workshop to machine

•   In combination with tools for assembly and on the shop floor

•   For all type of machines and tools pneumatic driven
