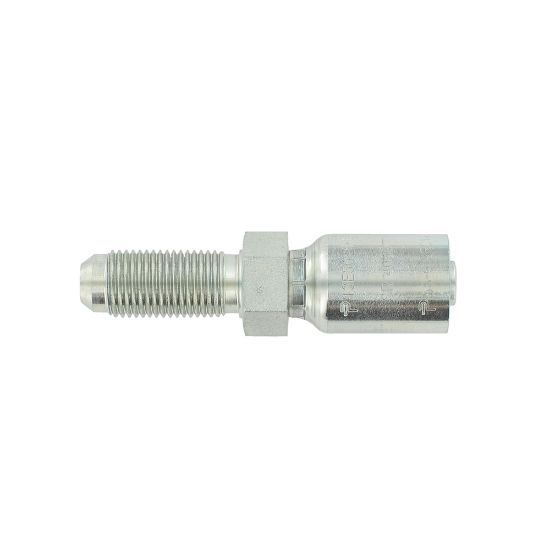

13E56-4-4 - Global Fittings - 56 Series - Inch

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	17 in stock

SKU 13E56-4-4

$19.53/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Materials of Construction	Steel
Hose I.D. (inch)	0.25"	Connection 2 Size	7/16"-20
Length (inch)	2.8"	Product Style	Male (JIC) 37° Long
Application	Construction Equipment	Dimensional Weight	0.0978 lb
Hex Size 2	n/a	Connection 2 Type	Male
Hex Size 1	n/a	Hex Size	5/8 inch (see drawing legend H)
Brand	Parker	Tube Outside Diameter	n/a
Body Material	Steel	Division	Parflex Division
Shape	Straight	Fitting Length	71 mm (see drawing legend A)
Connection 1 Type	Hose	Configuration	Hose to Port
Maximum Operating Pressure	5000 psi (Dependent on hose)	Shipping Weight	0.115 lb
For Fluid Type	Water	Division	Parflex Division
Coating	Chromium 6 Free-plated	Connection 2 Size	7/16"-20 inch Thread
Industry	Off-road Machinery	Connection 1 Size	1/4 inch Hose I.D.
Connection Length	1-13/16 inch Cut-off allowance	Technology	Fluid & Gas Handling
