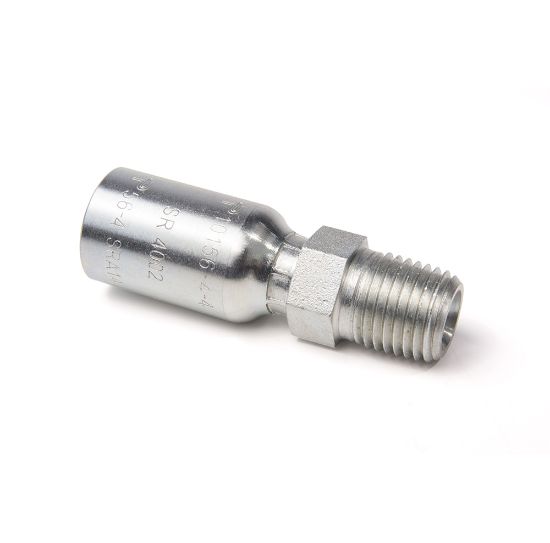

10156-6-6 - Global Fittings - 56 Series - Inch

Name: 10156-6-6 - Global Fittings - 56 Series - Inch
SKU: 10156-6-6
Price: 9.22 USD
Availability: InStock

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

Manufacturer: Parker

Availability:

56 in stock

Olivette, MO	10
TOPEKA, KS	9
Decatur, IL	9
Springfield, MO	8
Peoria, IL	6
Kansas City, KS	5
COLUMBIA, MO	4
Joplin, MO	4
Wichita, KS	1

Partner Available:

1206 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 10156-6-6

$9.22/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Length (inch)	2.16"
Product Style	Male NPTF Pipe - Rigid - Straight	Hose I.D. (inch)	0.375"
Connection 2 Size	3/8"-18	Materials of Construction	Steel
Division	Parflex Division	Brand	Parker
Division	Parflex Division	Technology	Fluid & Gas Handling
Application	Construction Equipment	Maximum Operating Pressure	34.5 MPa (Dependent on hose)
Body Material	Steel	Industry	Transportation
Dimensional Weight	0.0198 lb	Shape	Straight
Configuration	Hose to Port	For Fluid Type	Water
Connection 1 Size	9.5 mm Hose I.D.	Connection 1 Type	Hose
Connection 2 Size	3/8"-18 inch Thread	Connection 2 Type	NPTF
Hex Size	3/4 inch (see drawing legend H)	Coating	Chromium 6 Free-plated
Hex Size 1	n/a	Fitting Length	55 mm (see drawing legend A)
Connection Length	1-3/16 inch Cut-off allowance	Tube Outside Diameter	n/a
Hex Size 2	n/a	Shipping Weight	0.139 lb
