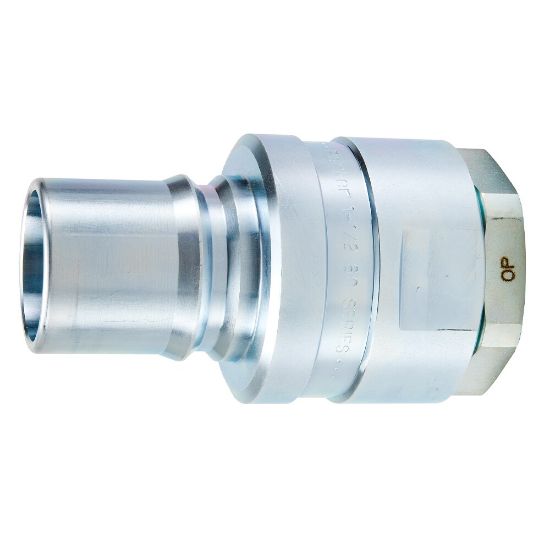

H12-63-T24 - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU H12-63-T24

$348.69/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	1500
Seal Material	Nitrile	Connection Thread Size (inch)	1 7/8 - 12
Body Size (inch)	1 1/2	Application	General Purpose
Body Material	Steel	Coupling Half	Male Nipple
Connection Type	Female ORB	Maximum Operating Temperature	250 °F
Valve Material	Steel	Division	Quick Coupling Division
Product Type	Manual Connect	Plating Type	Zinc with Clear Trivalent Chromate
Hex Size	2.38 inch	Minimum Operating Temperature	-40 °F
Flow Rate	378 L/min	Specifications Met	ISO 7241-1 Series B
Vacuum Pressure Rating	n/a	Body Material	Steel
Valve Type	Poppet
