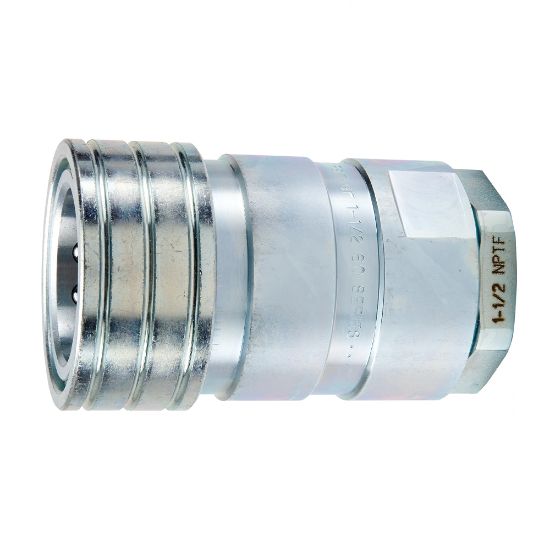

H12-62N - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	4 in stock

SKU H12-62N

$562.33/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Female Coupler
Body Material	Steel	Connection Thread Size (inch)	1-1/2 - 11-1/2
Connection Type	Female NPTF	Application	General Purpose
Body Size (inch)	1 1/2	Maximum Operating Pressure	1500
Seal Material	Nitrile	Body Material	Steel
Vacuum Pressure Rating	n/a	Valve Type	Poppet
Maximum Operating Temperature	250 °F	Valve Material	Steel
Division	Quick Coupling Division	Product Type	Manual Connect
Plating Type	Zinc with Clear Trivalent Chromate	Hex Size	2.38 inch
Minimum Operating Temperature	-40 °C	Flow Rate	100 Gal/min
Ball Material	Steel	Specifications Met	ISO 7241-1 Series B

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
