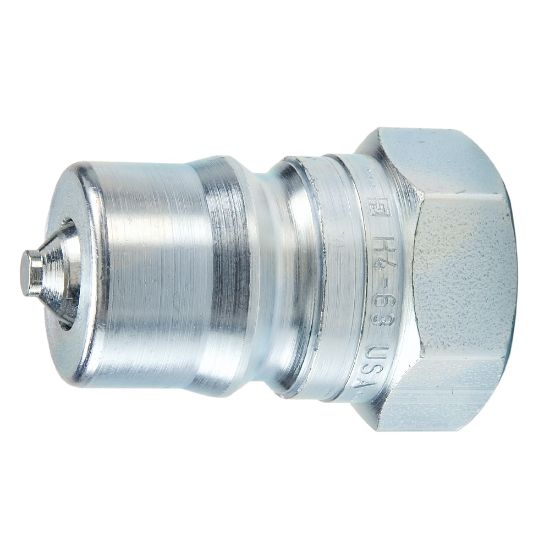

Parker H1-63 Poppet Steel Female NPTF General Purpose, ISO 7241-B, Hydraulic Quick Coupling - 60

Name: Parker H1-63 Poppet Steel Female NPTF General Purpose, ISO 7241-B, Hydraulic Quick Coupling - 60
SKU: H1-63
Price: 10.00 USD
Availability: InStock

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:

39 in stock

Olivette, MO	18
Springfield, MO	4
Joplin, MO	4
WICHITA, KS	3
COLUMBIA, MO	2
Kansas City, KS	2
Peoria, IL	2
Olivette, MO	2
Decatur, IL	2

Partner Available:

421 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU H1-63

$10.00/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Connection Type	Female NPTF	Coupling Half	Male Nipple
Body Material	Steel	Application	General Purpose
Body Size (inch)	1/8	Maximum Operating Pressure	5000
Connection Thread Size (inch)	1/8 - 27	Product Type	Manual Connect
Plating Type	Zinc with Clear Trivalent Chromate	Minimum Operating Temperature	-40 °C
Hex Size	0.56 inch	Flow Rate	0.8 Gal/min
Specifications Met	ISO 7241-1 Series B	Dimensional Weight	0.02670863309352518 lb
Vacuum Pressure Rating	-0.9 bar	Body Material	Steel
Valve Type	Poppet	Maximum Operating Temperature	121 °C
Division	Quick Coupling Division	Valve Material	Steel
