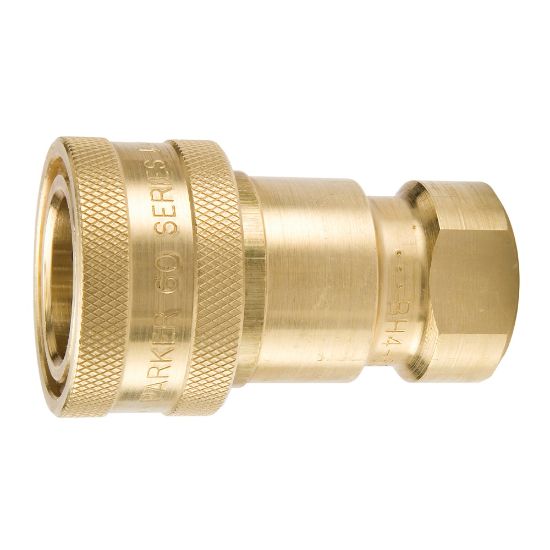

BH4-60W - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Name: BH4-60W - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series
SKU: BH4-60W
Price: 81.34 USD
Availability: LimitedAvailability

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:

2 Limited Stock

TOPEKA, KS

Partner Available:

42 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU BH4-60W

$81.34/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Maximum Operating Pressure	3500	Body Size (inch)	1/2
Seal Material	Ethylene Propylene	Application	General Purpose
Connection Type	Female NPTF	Connection Thread Size (inch)	1/2 - 14
Coupling Half	Female Coupler	Specifications Met	ISO 7241-1, series B
Ball Material	Stainless steel	Flow Rate	12 Gal/min
Product Type	Manual Connect	Plating Type	na
Hex Size	1.12 inch	Minimum Operating Temperature	-65 °F
Division	Quick Coupling Division	Valve Type	Poppet
Maximum Operating Temperature	204 °C	Valve Material	Brass
Vacuum Pressure Rating	27.4 Inch-Hg	Body Material	Brass
