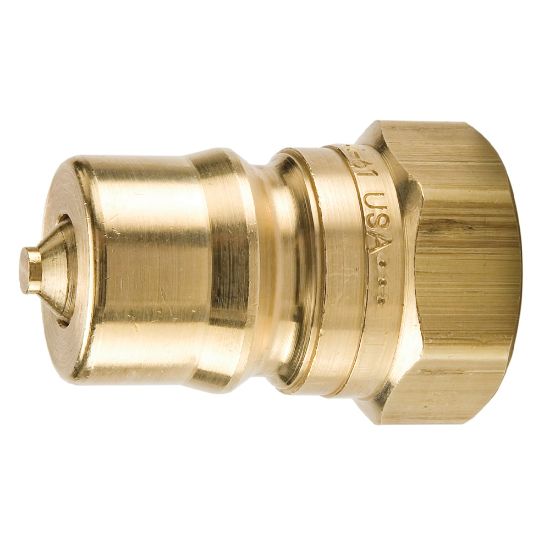

BH2-61 - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Name: BH2-61 - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series
SKU: BH2-61
Price: 17.79 USD
Availability: InStock

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:

212 in stock

Wichita, KS	150
TOPEKA, KS	26
Kansas City, KS	12
Springfield, MO	5
Decatur, IL	5
COLUMBIA, MO	4
Joplin, MO	4
Peoria, IL	4
WICHITA, KS	2

Partner Available:

1337 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU BH2-61

$17.79/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Coupling Half	Male Nipple	Body Size (inch)	1/4
Connection Thread Size (inch)	1/4 - 18	Seal Material	Nitrile
Connection Type	Female NPTF	Application	General Purpose
Maximum Operating Pressure	3700	Vacuum Pressure Rating	-0.9 bar
Body Material	Brass	Valve Type	Poppet
Specifications Met	ISO 7241-1 Series B	Flow Rate	3 Gal/min
Dimensional Weight	0.013329336530775381 lb	Plating Type	n/a
Product Type	Manual Connect	Hex Size	0.75 inch
Minimum Operating Temperature	-40 °F	Valve Material	Brass
Division	Quick Coupling Division	Maximum Operating Temperature	121 °C
