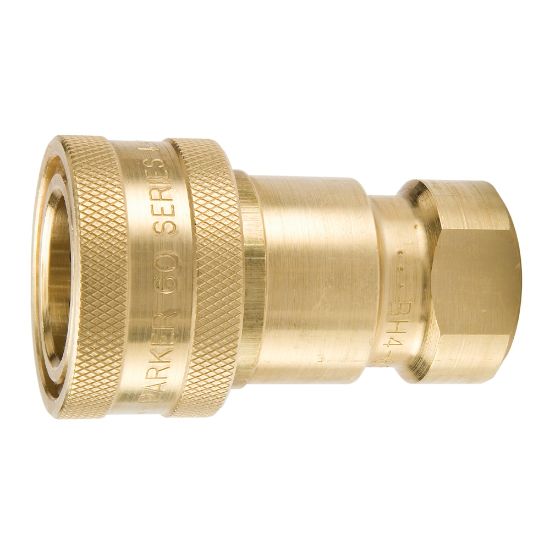

BH2-60-STM - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	14 in stock

SKU BH2-60-STM

$75.34/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Body Size (inch)	1/4	Connection Thread Size (inch)	1/4 - 18
Coupling Half	Female Coupler	Seal Material	Ethylene Propylene
Connection Type	Female NPTF	Application	Steam
Maximum Operating Pressure	3700	Body Material	Brass
Vacuum Pressure Rating	27.4 Inch-Hg	Ball Material	Stainless steel
Hex Size	0.81 inch	Minimum Operating Temperature	-65 °F
Flow Rate	3 Gal/min	Specifications Met	ISO 7241-1, series B
Product Type	Manual Connect	Plating Type	na
Valve Type	Poppet	Division	Quick Coupling Division
Maximum Operating Temperature	400 °F	Valve Material	Brass
