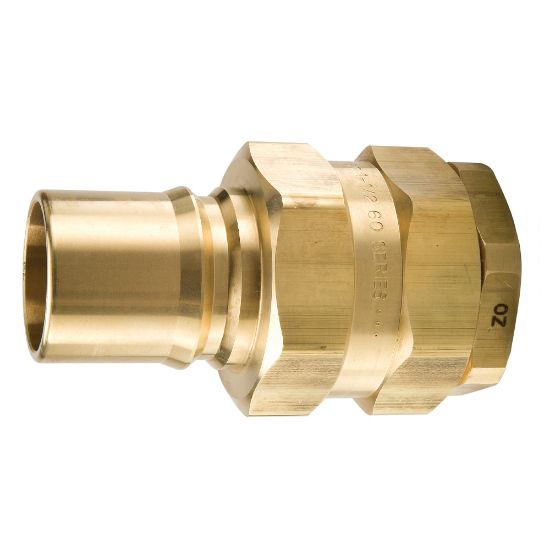

BH12-61N - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU BH12-61N

$363.15/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Coupling Half	Male Nipple	Seal Material	Nitrile
Connection Type	Female NPTF	Body Size (inch)	1 1/2
Maximum Operating Pressure	1500	Connection Thread Size (inch)	1 1/2 - 11 1/2
Application	General Purpose	Plating Type	n/a
Product Type	Manual Connect	Valve Type	Poppet
Division	Quick Coupling Division	Valve Material	Brass
Maximum Operating Temperature	121 °C	Vacuum Pressure Rating	n/a
Body Material	Brass	Minimum Operating Temperature	-40 °F
Hex Size	2.38 inch	Flow Rate	378 L/min
Specifications Met	ISO 7241-1 Series B
