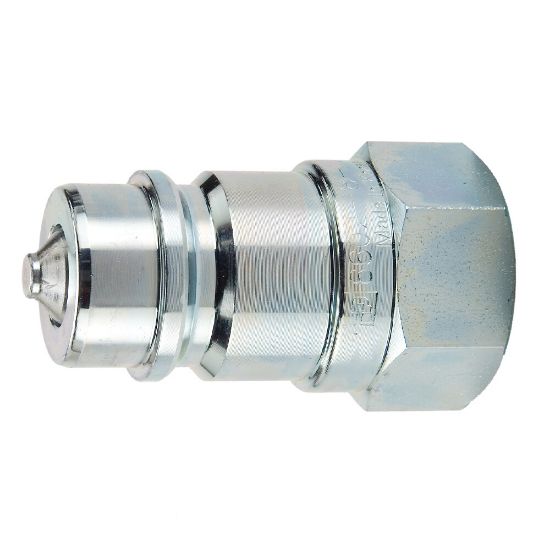

6602-4-4 - General Purpose, ISO 7241-A, Hydraulic Quick Couplings - 6600 Series

Name: 6602-4-4 - General Purpose, ISO 7241-A, Hydraulic Quick Couplings - 6600 Series
SKU: 6602-4-4
Price: 13.35 USD
Availability: InStock

Parker's hydraulic quick couplers and nipples are ideal for use in applications where fluid lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:

38 in stock

Kansas City, KS	15
Wichita, KS	4
Olivette, MO	3
Springfield, MO	2
COLUMBIA, MO	2
Kansas City, KS	2
TOPEKA, KS	2
Joplin, MO	2
Peoria, IL	2
Olivette, MO	2
Decatur, IL	2

Partner Available:

1145 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 6602-4-4

$13.35/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Male Nipple
Body Size (inch)	1/4	Connection Thread Size (inch)	1/4 - 18
Connection Type	Female NPTF	Interchange Type	ISO 7241-1 Series A
Flow Rate	3 Gal/min	Dimensional Weight	0.009997002398081534 lb
Body Material	Steel	Maximum Operating Pressure	5000 psi
Valve Type	Poppet	Division	Quick Coupling Division
Maximum Operating Temperature	250 °F	Seal Material	Nitrile
Product Type	Manual Connect	Plating Type	Zinc with Clear Trivalent Chromate
Hex Size	0.75 inch	Minimum Operating Temperature	-40 °F
Application	General Purpose	Specifications Met	ISO 7241-1 Series A

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
