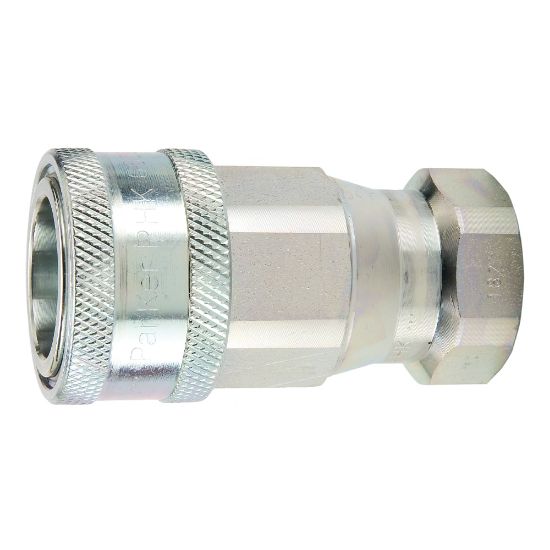

6601-2-4 - General Purpose, ISO 7241-A, Hydraulic Quick Couplings - 6600 Series

Parker's hydraulic quick couplers and nipples are ideal for use in applications where fluid lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	23 in stock

SKU 6601-2-4

$56.28/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size (inch)	1/8 - 27
Coupling Half	Female Coupler	Connection Type	Female NPTF
Body Size (inch)	1/4"	Body Material	Steel
Maximum Operating Pressure	5000 psi	Valve Type	Poppet
Maximum Operating Temperature	250 °F	Division	Quick Coupling Division
Seal Material	Nitrile	Plating Type	Zinc with Clear Trivalent Chromate
Product Type	Manual Connect	Hex Size	0.88 inch
Minimum Operating Temperature	-40 °F	Flow Rate	3 Gal/min
Application	Hydraulics	Specifications Met	ISO 7241-1 Series A
Interchange Type	ISO 7241-1 Series A	Dimensional Weight	0.02670863309352518 lb
