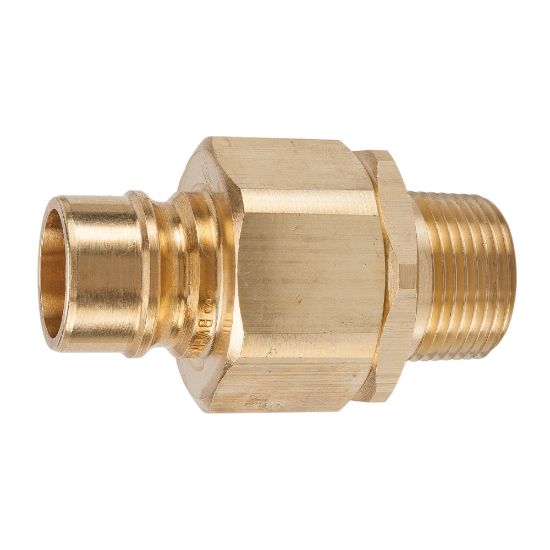

BPHN12-12M - General Purpose, Hydraulic Quick Couplings - H Series

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	8 in stock

SKU BPHN12-12M

$47.10/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Male Nipple
Connection Type	Male NPT	Body Size (inch)	3/4
Connection Thread Size (inch)	3/4 - 14	Body Material	BRASS
Maximum Operating Pressure	2000	Valve Type	Unvalved
Division	Quick Coupling Division	Valve Type	Unvalved
Dimensional Weight	0.27302158273381294 lb	Body Material	Brass
Plating Type	n/a	Minimum Operating Temperature	-40 °F
Hex Size	1.06 inch	Application	Hydraulics
Seal Material	Nitrile	Maximum Operating Temperature	250 °F
Product Type	Manual Connect
