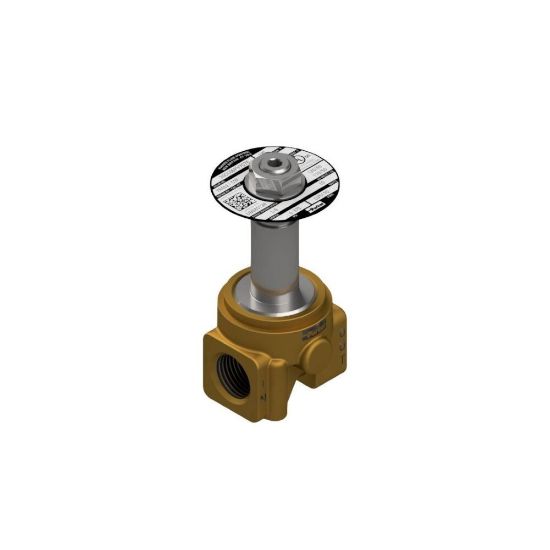

20LC04LN7 - G7 SERIES Solenoid Valves

The Evolution of Gold Ring™ and Skinner®
Next-Generation 2-Way and 3-Way Solenoid Valves

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	Backordered

SKU 20LC04LN7

$95.94/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	NBR
Body Material	Lead-Free Brass	Configuration	Normally Closed
Voltage	Pressure Vessel Only (AC or DC Voltage)	Function	2-Way
Coil Type	Requires G7 Series Coil Kit	Port Size (inch)	1/4 NPT
Orifice Size (inch)	3/32	Minimum Pressure Differential (psi)	0
Maximum Operating Pressure Differential (psig)	550 (AC) / 520 (DC)	Division	Fluid Control Division
Port Size	NPT 1/4 inch	Input Voltage	Pressure Vessel Only (AC or DC Voltage)
Actuation Type	Direct Acting	Power Consumption	10 W
Body Material	Lead-Free Brass	Seal Material	NBR
Specifications Met	-	Maximum Pressure Differential	550 psig (AC)
Configuration	All Ports in Body	Function	2-Way
Coil Specifications Met	Requires G7 Series Coil Kit	Maximum Fluid Temperature	185 °F
Minimum Pressure Differential	0 psi	Main Flow Coefficient	0.18 Cv
Exhaust Flow Coefficient	n/a	Installation	IOM7220
Orifice Size	3/32 inch	Preventive Maintenance Kit	7R004
Maximum Ambient Temperature	150 °F
