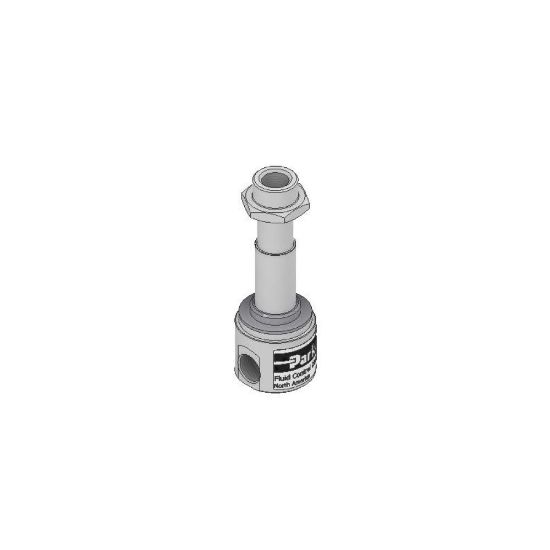

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

30CC02GV4 - G4 Series Miniature Solenoid Valves

2-Way and 3-Way miniature solenoid valves for industrial and commerical equipment available in both round-body and cartridge-mount variants

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	Backordered

SKU 30CC02GV4

$87.41/each

Products specifications

Attribute name	Attribute value
UOM	EA	Main Flow Coefficient	0.09 Cv
Seal Material	FKM	Minimum Pressure Differential	0 psi
Installation	IOM 304	Function	Normally Closed (NC)
Port Size	1/8 inch	Media	General Purpose
Exhaust Orifice Size	1/16 inch	Coil Type	Requires G4 Series Coil Kit
Valve Type	3-Way	Maximum Ambient Temperature	125 °F (DC)
Division	Fluid Control Division	Maximum Pressure Differential	130 psi (AC or DC)
Port Type	NPT	Preventive Maintenance Kit	4R002
Orifice Size	1/16 inch	Configuration	All Ports in Body
Body Material	Stainless Steel 303	Actuation Type	Direct Acting
Power Consumption	10 W (AC)	Maximum Fluid Temperature	240 °F
Input Voltage	Pressure Vessel Only (AC or DC Voltage)	Exhaust Flow Coefficient	0.10 Cv
