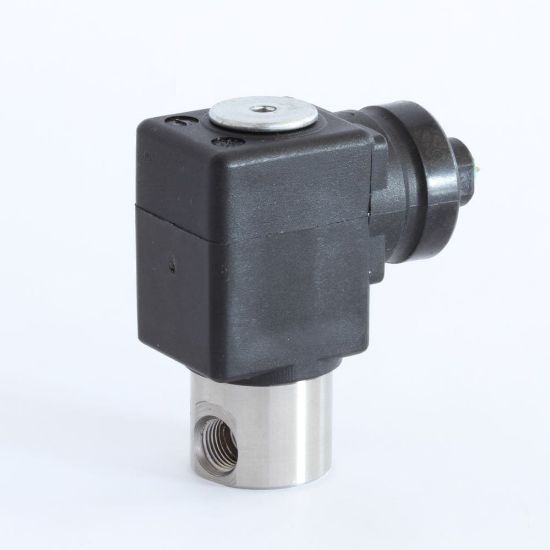

20CC02LV4B4F - G4 Series Miniature Solenoid Valves

2-Way and 3-Way miniature solenoid valves for industrial and commerical equipment available in both round-body and cartridge-mount variants

Manufacturer: Parker

Availability:	Backordered
Partner Available:	Backordered

SKU 20CC02LV4B4F

$97.07/each

Products specifications

Attribute name	Attribute value
UOM	EA	Port Type	NPT
Specifications Met	CE	Orifice Size	3/32 inch
Maximum Fluid Temperature	240 °F	Body Material	Stainless Steel 303
Maximum Pressure Differential	320 psi	Preventive Maintenance Kit	4R001
Configuration	All Ports in Body	Actuation Type	Direct Acting
Division	Fluid Control Division	Seal Material	FKM
Minimum Pressure Differential	0 psi	Coil Type	Leads-only (Incl. Ground Lead)
Insulation Class	F (155°C)	Valve Type	2-Way
Maximum Ambient Temperature	135 °F	Input Voltage	110/50 VAC
Port Size	1/8 inch	Power Consumption	8.5 W
Function	Normally Closed (NC)	Installation	IOM 204
Main Flow Coefficient	0.22 Cv	Media	General Purpose
