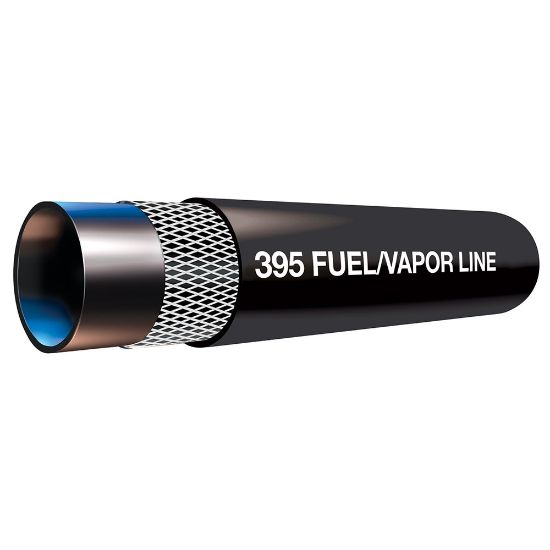

39554 - Fuel Line/Vapor Emission Hose, Series 395

Fuel Line/Vapor Emission Hose is designed for engine fuel supply and vapor emission containment in applications to 257°F and 75 psi, Series 395

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 115 days
Partner Available:	57 in stock

SKU 39554

$4.24/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/2
Maximum Working Pressure (psi)	35	Specifications Met	SAE 30R7
Minimum Operating Temperature	-40 °C	Hose Reinforcement Material	2 Plies of Textile
Cover Structure	Smooth	Minimum Bend Radius	4 inch
Application	Specialty	Package Type	Coil
Media	Chemicals (Ethanol) - Check your fluid compatibility with our catalogue chart.	Cover Material	Chloroprene Rubber (CR)
Length per Package	250 ft	Division	Hose Products Division
Maximum Operating Temperature	257 °F	Hose Inner Tube Material	Nitrile
Maximum Operating Pressure	35 psi	Weight	0.17 lb
Vacuum Pressure Rating	10 Inch-Hg	Outside Diameter	19.8 mm
Inside Diameter	1/2 inch	Cover Color	Black

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)

Compliance, Certifications & Safety

FCG HPD REACH Annex XIV (PDF)
