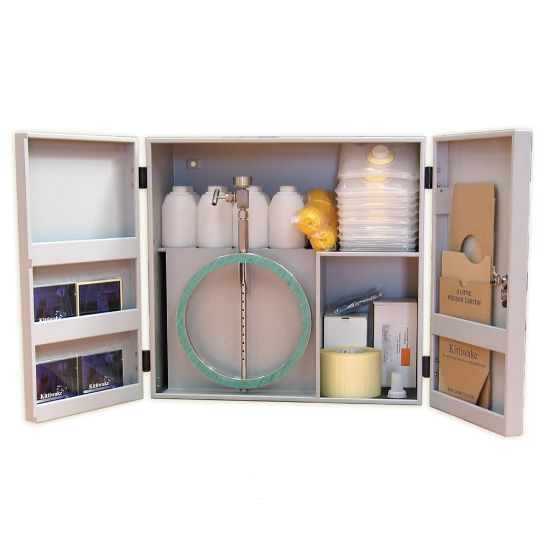

FG-K16091-KW - Fuel Drip Bunker Samplers

Parker bunker samplers are designed to provide a representative sample of the entire fuel delivery. Manufactured from stainless steel.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 7 days
Partner Available:	Backordered

SKU FG-K16091-KW

$13,566.34/each

Products specifications

Attribute name	Attribute value
UOM	EA	Quantity per Box	1
Product Style	Bunker Sample Storage System	Division	Hydraulic & Industrial Process Filtration Division EMEA
Connection Type	Multiple line diameter versions from 50 mm to 350 mm	Size	515 to 840 x 31.5 x 95 to 401 mm (Height x Width x Diameter)
Accessories Included	Sample containers, anti-tamper locks, bottle seals and labels available separately	Width	31.5 mm
Height	840 mm	For Fluid Type	Lube Oil Fuel
Seal Material	Nitrile Rubber	Sensing Range	n/a
Options	Wide range of line diameters: 50 mm (2") up to 300 mm (12") in 25 mm (1")	Minimum Fluid Temperature	-58 °F
Sensor Connection	n/a	Body Material	Stainless Steel
Features	Simple and effective continuous fuel sampling for the entire delivery as ISO 13739<br/>ASTM D 4057: 2000 Standard practice for manual sampling of petroleum and petroleum products	Weight	3 to 12
Industry	Marine	Communication Interface	n/a
Division	Hydraulic & Industrial Process Filtration Division EMEA	Ingress Protection Rating	n/a
Sensing Method	n/a	Brand	Kittiwake
Electrical Requirements	n/a	Signal Output	n/a
Specifications Met	ASTM D 4057	Cycle Time	n/a
Product Style	Sample Capture Device	Operating Temperature	-50 to 75 °C
Port Type	Pipe bore	Flow Rate	n/a
Materials of Construction	Stainless Steel	Outside Diameter	650 x 620 x 275 mm
Product Type	Sampling System	Technology	Hydraulics
Port Size	14 inch	Operating Pressure	580 psi
Accuracy	n/a	Maximum Fluid Temperature	75 °C
Wetted Material	Stainless steel, PTFE, non-asbestos grade Y gasket (aramid/glass fibres and nitrile rubber)
