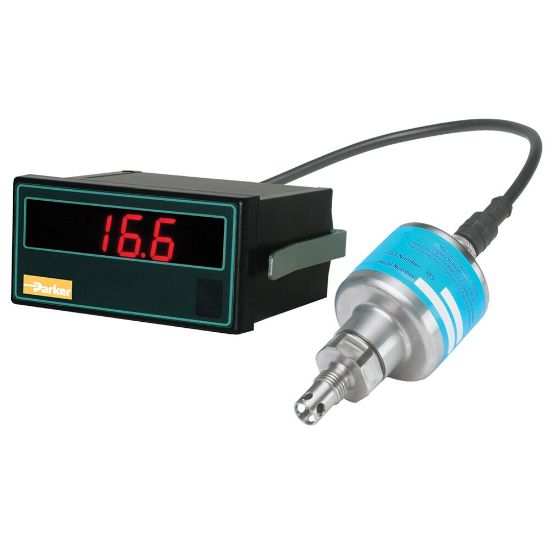

MS2202110 - Fluid Moisture Sensor – iCountMS Range

Note: This product is no longer available - please refer to the “Related Products” section of this page for alternative products, or contact us for further assistance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 185 days
Partner Available:	Backordered

SKU MS2202110

Products specifications

Attribute name	Attribute value
UOM	EA	Port Type	BSP Bonded Seal
Signal Output	0-5 Vdc	Port Size	1/4"
Options	Programmable	Fluid Type	Petroleum, Synthetic Oils
Connection Size	M12X1 - 8 way	Accuracy	+/- 5 %
Technology	Filtration	Seal Material	Fluorocarbon
Width	50 mm	Height	50 mm
For Fluid Type	Synthetic Oils	Division	Hydraulic & Industrial Process Filtration Division EMEA
Maximum Fluid Temperature	85 °C	Product Style	Moisture Sensor
Operating Pressure	420 bar	Product Type	Condition Monitor
Length	106 mm	Materials of Construction	Stainless Steel 303
Operating Temperature	-40 to 85 °C	Product Series	iCountMS
Application	Marine Hydraulics	Specifications Met	CE Certification
Brand	Parker	Electrical Requirements	8 to 30 VDC
Diameter	50 mm	Ingress Protection Rating	IP68
Division	Hydraulic & Industrial Process Filtration Division EMEA	Sensing Method	Relative Humidity RH cell %
Industry	Construction	Body Material	Stainless Steel 303
Weight	300 g	Minimum Fluid Temperature	-40 °C
