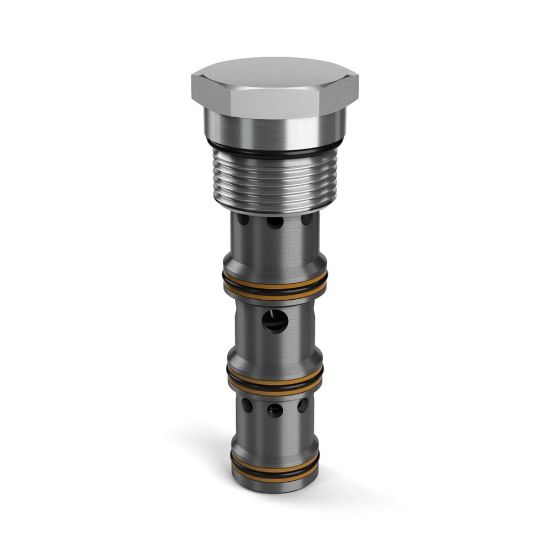

L06A3-90-90N - Flow Divider/Combiner Valves

Parker offers four different flow divider/combiner valves to cover a wide range of flows up to 320 lpm (85 gpm) and pressures as high as 420 bar (6,000 psi). Standard and custom ratios are available, along with optimized flow range options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 185 days
Partner Available:	Backordered

SKU L06A3-90-90N

$388.46/each

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	47 GAL/MIN, 180 L/MIN
Seal Material	Nitrile	Standard Flow Rate Setting	17.2-47.8 GAL/MIN, 65-180 L/MIN
Ratio	50/50	Connection Size	N/A
Maximum Inlet Pressure Rating	420 bar	Function	Flow Divider/Combiner
Maximum Operating Temperature	+121 °C	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Division	Hydraulic Cartridge Systems Division	Maximum Flow Rate	180 L/min
Seal Material	Nitrile	Valve Material	All parts steel. All operating parts hardened steel
Cavity Size	C16-4	Minimum Operating Temperature	-30 °F
Actuation Type	Interlocking Spools	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Operating Temperature	-30 to +250 °F
Maximum Operating Pressure	420 bar	Configuration	N/A
Flow Rate	47 Gal/min	Standard Flow Rate Setting	17.2-47.8 Gal/min
Connection Type	N/A	Ratio	50/50
Body Material	N/A	Operation Type	Automatic
Flow Rate Accuracy	10%	Weight	0.86 lb
Division	Mobile Hydraulic Systems Division Europe	Installation Torque	74 lb-ft
