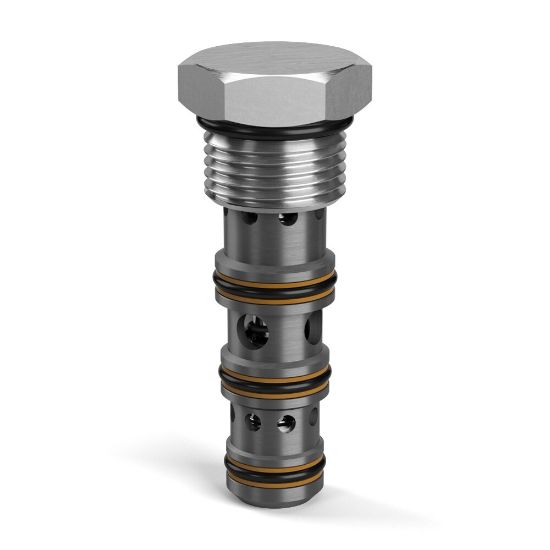

L04A3-30-30N - Flow Divider/Combiner Valves

Parker offers four different flow divider/combiner valves to cover a wide range of flows up to 320 lpm (85 gpm) and pressures as high as 420 bar (6,000 psi). Standard and custom ratios are available, along with optimized flow range options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	11 in stock

SKU L04A3-30-30N

$324.44/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Flow Rate	16 GAL/MIN, 60 L/MIN	Standard Flow Rate Setting	3.7-15.9 GAL/MIN, 14-60 L/MIN
Ratio	50/50	Seal Material	Nitrile
Maximum Inlet Pressure Rating	420 bar	Maximum Operating Temperature	+121 °C
Valve Material	All parts steel. All operating parts hardened steel	Maximum Flow Rate	60 L/min
Division	Hydraulic Cartridge Systems Division	Connection Type	N/A
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Minimum Operating Temperature	-30 °F
Cavity Size	C10-4	Function	Flow Divider/Combiner
Connection Size	N/A	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Configuration	N/A	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Actuation Type	Interlocking Spools	Operating Temperature	-34 to +121 °C
Flow Rate	16 Gal/min	Operation Type	Automatic
Ratio	50/50	Standard Flow Rate Setting	14-60 L/min
Division	Mobile Hydraulic Systems Division Europe	Flow Rate Accuracy	10%
Weight	0.12 kg	Maximum Operating Pressure	6000 psi
Body Material	N/A	Installation Torque	37 lb-ft
