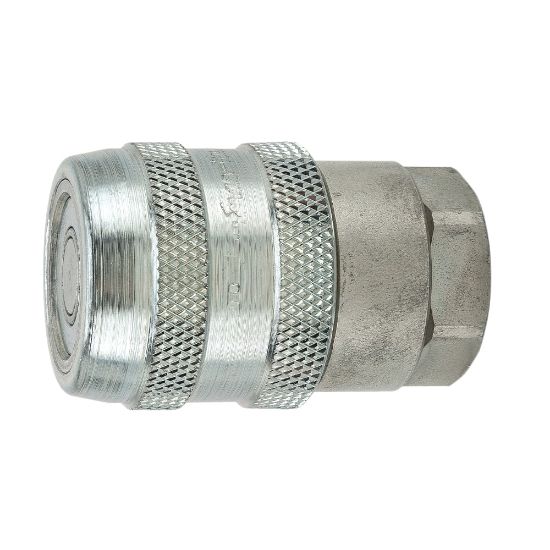

71-3C12-12FV - Flat Face, High Pressure, Hydraulic Quick Couplings - 71 Series

Parker's high pressure stainless steel, non-spill, flat face hydraulic couplers are available in a wide range of sizes for use in hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	Backordered

SKU 71-3C12-12FV

$161.94/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Coupling Half	Female Coupler	Connection Type	Female NPTF
Connection Thread Size (inch)	3/4 - 14	Body Size (inch)	3/4
Maximum Operating Pressure	7500	Application	Hydraulics
Valve Type	Non-spill	Body Material	Steel
Seal Material	Fluorocarbon	Division	Quick Coupling Division
Maximum Operating Temperature	400 °F	Minimum Operating Temperature	-15 °F
Hex Size	1.75 inch	Product Type	Push to Connect
Plating Type	Zinc with Clear Trivalent Chromate
