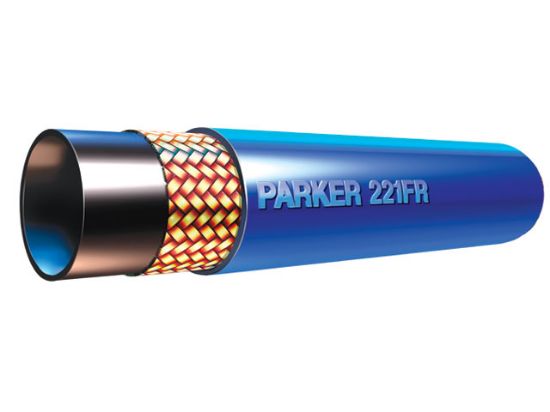

221FR-6 - Fire Resistant Marine Fuel and Engine Hose 500 PSI - 221FR Hose

Parker's 221FR hose is a transportation hose used for marine fuel and engines that provides fire resistance for gasoline and fuel systems.

Availability:	Backordered
Partner Available:	1275 in stock

SKU 221FR-6

$30.65/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-6
Division	Hose Products Division	Application	Diesel Fuels
Media	Petroleum Hydraulic Fluids	Maximum Operating Pressure	500 psi
Maximum Operating Temperature	212 °F	Minimum Operating Temperature	-4 °F
Specifications Met	Lloyd RE	Weight	0.23 lb/ft
Outside Diameter	17 mm	Cover Material	Synthetic Rubber
Inside Diameter	8 mm	Compatible Fitting	22 Series
Minimum Bend Radius	30 mm	Vacuum Pressure Rating	24 Inch-Hg
Hose Inner Tube Material	Synthetic Rubber	Hose Reinforcement Material	1 Braid of Steel Wire
Cover Color	Blue	Nominal Hose Inside Diameter	8 mm
Material	Rubber	Pkg Qty/UOM	1 FT
Pkg Qty	1	UOM	FT
Inner Diameter	0.313 Inch	Working Pressure	500 PSI (30 bar)
Mating Fitting Series	26, 20, 22	Parker Group	Fluid Connector
Inch/Metric	Inch	Parker Division	Hose Products
Inner Diameter	0.313 Inch	Inner Diameter Inch/mm	Inch
Material	Rubber	Application	Transportation
Hose Pressure Range	Low	Mating End Fitting Series	26, 20, 22
Working Pressure Range	500 to 999 PSI (34 to 69 bar	Series	221FR
Hose Category	Fuel
