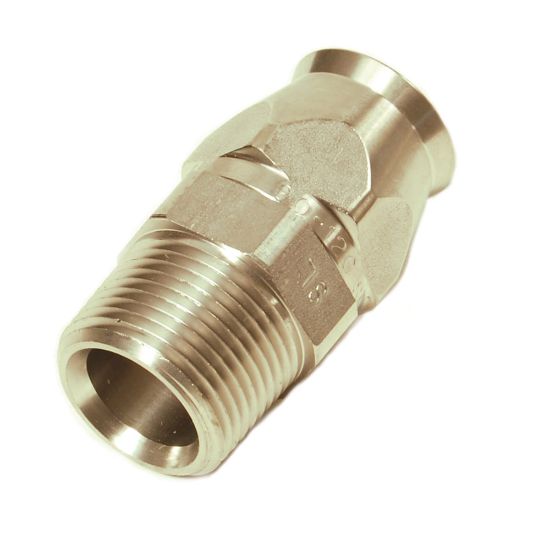

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

20190-2-4C - Field Attachable Fittings for PTFE Hose - 90 Series

Parker's 90 Series fittings are used with 919/919B PTFE hoses from Parflex division.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	Backordered

SKU 20190-2-4C

$118.91/each

Products specifications

Attribute name	Attribute value
UOM	EA	Product Style	Male NPTF Pipe - Rigid - Straight
Hose I.D. (inch)	0.188"	Connection 2 Size	1/8"-27
Length (inch)	1.33"	Division	Parflex Division
Brand	Parker	Division	Parflex Division
Technology	Fluid & Gas Handling	Application	Hydraulics
Product Type	Hose Fittings	Product Series	90
Maximum Operating Pressure	207 bar	Body Material	Stainless Steel
Specifications Met	n/a	Industry	Industrial
Dimensional Weight	0.0529 lb	Shape	Straight
Configuration	Hose to Port	For Fluid Type	Air (Pneumatic Media)
Connection 1 Size	-4 (Size)	Connection 1 Type	Hose
Connection 2 Size	1/8"-27 inch Thread	Connection 2 Type	Rigid
Hex Size	9/16 inch (see drawing legend H)	Coating	Chromium 6 Free-plated
Hex Size 1	9/16 inch (see drawing legend J)	Fitting Length	1.33 inch (see drawing legend A)
Connection Length	56 mm	Tube Outside Diameter	n/a
