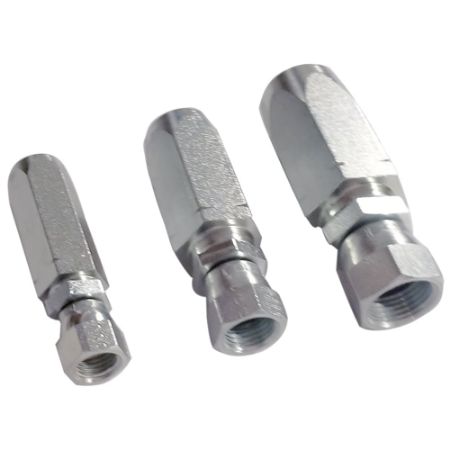

Field Attachable Fittings - 51R Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s 51R Series field-attachable fittings are used with 510D and 518D 100R7 hoses from Parflex division. Unlike crimp fittings, Parker’s Field Attachable Fittings allow customers the convenience of making assemblies in the field with the use of a vice rather than a crimper. Please note the couplings on these fittings are only intended for use on hoses that have not previously been in service.
Markets:
• Construction
• Aerial Lift
• Machine Tool
Features/Benefits:
• No crimper needed for installation
• Optional deep-well socket assembly allowing for quick, power assist assembly
• Full pressure and temperature rating for 100R7 (510D/518D) hoses
Applications:
• Medium pressure hydraulic service
Read More...Markets:
• Construction
• Aerial Lift
• Machine Tool
Features/Benefits:
• No crimper needed for installation
• Optional deep-well socket assembly allowing for quick, power assist assembly
• Full pressure and temperature rating for 100R7 (510D/518D) hoses
Applications:
• Medium pressure hydraulic service
| Action | SKU | Availability | Partner Available | Price | UOM | Hose I.D. (inch) | Product Style | Division | Port Size | Fitting Type | Shape | Connection Size | Hose Inside Diameter | Materials of Construction | Connection Type | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20151R-6-6 | Backordered | 6 in stock | $44.98/each | EA | 0.375" | Male Taper Pipe Rigid | Parflex Division | 0.375 inch | Field Attachable | Straight | 3/8"-18 inch Thread | 10 mm | Steel | NPT | 2.9 inch | |
| 20351R-4-3 | 4 in stock | 75 in stock | $35.20/each | EA | 0.1875" | Male JIC 37° Rigid | Parflex Division | 0.25 inch | Field Attachable | Straight | 7/16"-20 inch Thread | 5 mm | Steel | SAE Thread | 2.54 inch | |
| 20351R-4-4 | 48 in stock | 140 in stock | $37.24/each | EA | 0.25" | Male JIC 37° Rigid | Parflex Division | 0.25 inch | Flare | Straight | 7/16"-20 inch Thread | 6 mm | Steel | SAE Thread | 2.63 inch | |
| 20351R-6-6 | 19 in stock | 141 in stock | $47.06/each | EA | 0.375" | Male JIC 37° Rigid | Parflex Division | 0.375 inch | Field Attachable | Straight | 9/16"-18 inch Thread | 10 mm | Steel | SAE Thread | 2.61 inch | |
| 20351R-8-8 | 6 in stock | 109 in stock | $57.59/each | EA | 0.5" | Male JIC 37° Rigid | Parflex Division | 0.5 inch | Field Attachable | Straight | 3/4"-16 inch Thread | 13 mm | Steel | SAE Thread | 3.08 inch | |
| 20651R-4-3 | 5 in stock | 71 in stock | $34.44/each | EA | 0.1875" | SAE JIC 37° Swivel | Parflex Division | 6 mm | Field Attachable | Straight | 7/16"-20 inch Thread | 5 mm | Steel | SAE Thread | 2.56 inch | |
| 20651R-4-4 | 34 in stock | 280 in stock | $35.71/each | EA | 0.25" | SAE JIC 37° Swivel | Parflex Division | 6 mm | Field Attachable | Straight | 7/16"-20 inch Thread | 6 mm | Steel | SAE Thread | 2.65 inch | |
| 20651R-6-6 | 28 in stock | 320 in stock | $42.63/each | EA | 0.375" | SAE JIC 37° Swivel | Parflex Division | 10 mm | Flare | Straight | 9/16"-18 inch Thread | 10 mm | Steel | SAE Thread | 2.93 inch | |
| 20651R-8-8 | 19 in stock | 233 in stock | $56.13/each | EA | 0.5" | SAE JIC 37° Swivel | Parflex Division | 0.5 inch | Field Attachable | Straight | 3/4"-16 inch Thread | 13 mm | Steel | SAE Thread | 3.3 inch | |
| 2JS51R-6-6 | Backordered | 20 in stock | $157.36/each | EA | 0.375" | Seal-lok Female Swivel Straight - Long | Parflex Division | 0.375 inch | Field Attachable | Straight | 9/16"-18 inch Thread | 10 mm | Steel | SAE Thread | 2.83 inch | |
| 2JS51R-8-8 | Backordered | Backordered | $166.37/each | EA | 0.5" | Seal-lok Female Swivel Straight - Long | Parflex Division | 0.5 inch | Face Seal | Straight | 3/4"-16 inch Thread | 13 mm | Steel | SAE Thread | 3.13 inch |
