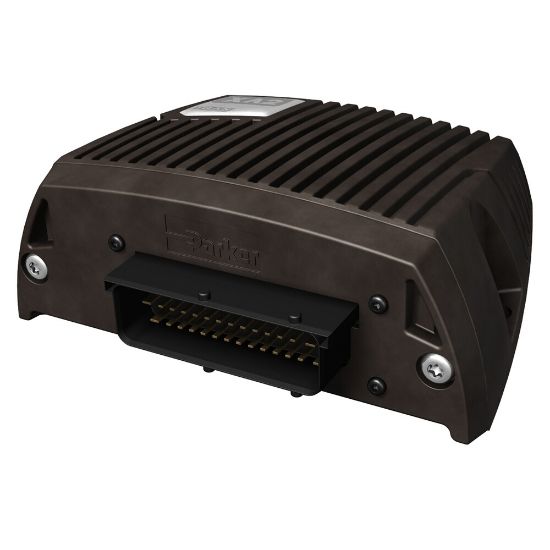

5010033 - Expansion controllers - IQAN-XA2

This product is obsolete. Please contact your local Parker Representative for more information. Parker's IQAN-XA2 expansion module can be added to increase I/O in an IQAN system.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU 5010033

Products specifications

Attribute name	Attribute value
UOM	EA	Model Number	IQAN-XA2
Output Current Rating	1800 mA	Specifications Met	2004/108/EC
Number of Inputs	8 (20)	Industry	Material Handling
Ingress Protection Rating	65	Division	Electronic Motion and Controls Division
Electrical Connection	AMP/Tyco Power Timer	Maximum Operating Temperature	70 °C
Housing Material	Aluminum	Number of Outputs	12
Power Supply Voltage	9 to 32 VDC	Minimum Operating Temperature	-30 °C
Controller Type	Slave/Expansion Module
