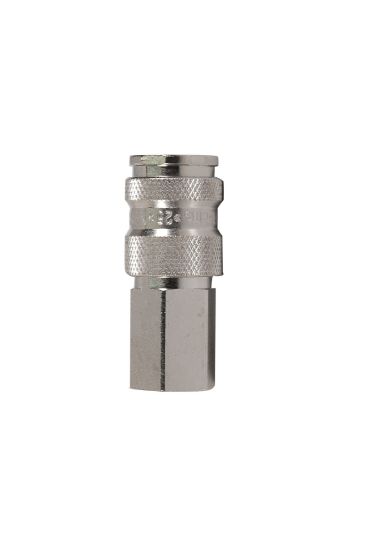

25KAIN17MPN - European Interchange, High Flow, Quick Connect Air Couplings - Rectus 25 Series

Parker's high flow quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	29 in stock

SKU 25KAIN17MPN

$56.81/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size (inch)	1/4
Hose I.D. (inch)	na	Connection Thread Size (inch)	3/8 - 18
Thread Style	Female	Coupling Half	Coupler
Connection Type	NPSF	Division	Quick Coupling Division
Division	Quick Coupling Division	Application	Air
Media	Low pressure fluids and compressed air	Valve Type	Valved
Maximum Operating Pressure	300 psi	Maximum Operating Temperature	212.0 °F
Minimum Operating Temperature	-20.0 °C	Body Material	Nickel Plated Brass
Seal Material	Nitrile	Sleeve Type	Push to connect
Plating Type	Nickel plating on steel sleeve	Interchange Type	European High Flow
Lock Type	Locking balls
