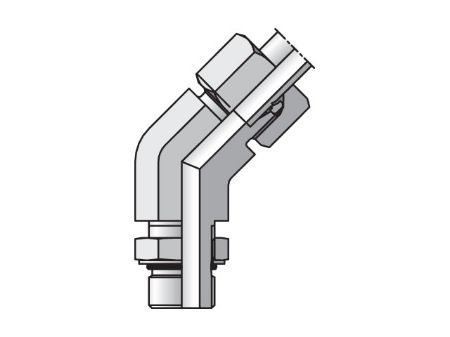

EO/EO-2 45° Elbow, Adjustable - VEE-UNF
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker EO and EO-2 metric flareless bite type tube fittings have become the "world standard' for many industrial manufacturers requiring dependable leak free hydraulic tube fittings. The EO progressive ring (ferrule) has two cutting edges that bite the tube outer diameter. EO-2 fittings incorporate elastomeric seals on all joints to insure leak free systems.
Read More...| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Material | End 2 | Pkg Qty | O-Ring/Seal Material | Pressure Series | Pressure Rating | End 1 | Parker Division | Inch/Metric | Pressure Series | Pressure Rating | End 1 Type | Trade Name | Tube Fitting/Adapter Type | Configuration Sub-Type | Material | End 2 Type | Series | O-Ring/Seal Material | End 1 | Configuration Type | Parker Group | End 2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VEE15L3/4UNFCF | Backordered | Backordered | $1,024.60/each | EA | EA | Steel | 3/4-16 UN/UNF-2A | 10 | Nitrile | Light | 315 bar | 15 mm | Tube Fitting | Metric | Light | 315 bar | mm | EO/EO-2 | Bite Type, EO/EO-2 Flareless | Adjustable - 24° Flareless / SAE-ORB | Steel | UN/UNF-2A | EO | Nitrile | 15 mm | 45° Elbow | Fluid Connector | 3/4-16 UN/UNF-2A |
