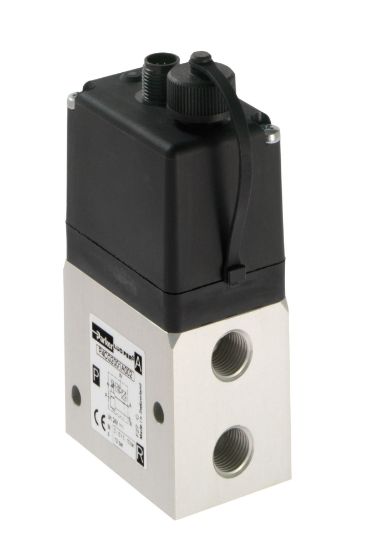

P4CG2001C001 - Electronic Proportional Regulators - EPP4 Series

EPP4 programmable electronic proportional regulator allows for regulation of outlet pressure proportionally to an electrical control signal. This unit utilizes a user friendly Calys software to configure all parameters.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 106 days
Partner Available:	Backordered

SKU P4CG2001C001

$1,781.59/each

Products specifications

Attribute name	Attribute value
UOM	EA	Thread Type	BSP
Port Size	1/4"	Response Time	Filling: 20 / Emptying: 20 ms
Input Voltage	24VDC \| 12VDC \| 24VAC \| 120/110VAC	Power Consumption	1.2 \| 1.6 \| 1.8 \| 2.4 W
Port Size	1/4"	Inlet Pressure Rating	0 to 10.5 bar
Maximum Flow Rate	41 \| 88 SCFM	Electrical Connection	M23 Mini; 6-Pin \| M12 Micro; 6-Pin \| Conduit
Control Method	8-pin M12 & 5-pin M12	Media	40μ Filtered compressed air \| Inert gas
Product Type	Electronic Proportional Regulator (pulse width modulated)	Ingress Protection Rating	NEMA 4
Division	Pneumatic Division	Display Type	N/A
Port Type	BSP	Pressure Control Range	0 to 10.5 bar
Configuration	Software Programmable	Weight	6.3 lb
Operating Temperature	0° to 60° °C
