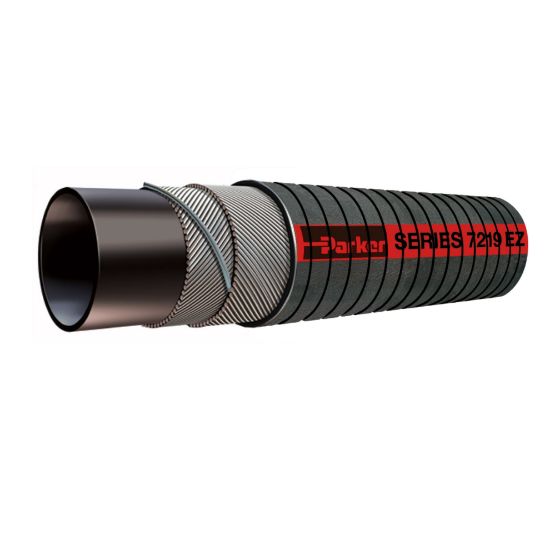

7219-0750025 - E-Z Form MP Oil Resistant Flexible Suction Hose, Multipurpose, Series 7219

Name: 7219-0750025 - E-Z Form MP Oil Resistant Flexible Suction Hose, Multipurpose, Series 7219
SKU: 7219-0750025
Price: 17.80 USD
Availability: InStock

E-Z Form MP Greek Corrugated Multipurpose Oil Resistant Suction Hose is an extremely flexible hose designed for refined fuels and oil transfer in applications to 250°F and 75 psi, Series 7219

Manufacturer: Parker

Availability:

48 in stock

Olivette, MO

Partner Available:

1322 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 7219-0750025

$17.80/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/4
Standard Package Quantity	25 ft	Division	Hose Products Division
Vacuum Pressure Rating	737 mm-Hg	Cover Color	Black
Media	Mild Chemicals - Check your fluid compatibility with our catalogue chart.	Design Factor	4:1
Compatible Fitting	HY/43	Maximum Operating Temperature	121 °C
Hose Inner Tube Material	Black	Specifications Met	n/a
Hose Reinforcement Material	2 Plies of Textile with Wire Helix	Minimum Operating Temperature	-30 °F
Minimum Bend Radius	36.3 mm	Cover Material	Chloroprene Rubber (CR)
Weight	0.58 kg/m	Outside Diameter	30 mm
Maximum Operating Pressure	0.5 MPa	Inside Diameter	19.1 mm
Application	Engine

Product resources

Literature and Reference Materials
