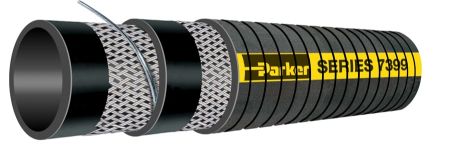

E-Z Form HT Flexible Resistant Suction Hose, High Temperature, Series 7399

Parker's Series 7399 E-Z Form HT Greek Corrugated High Temperature Oil Resistant Suction Hose provides excellent service across a variety of medium pressure hot oil transfer applications that require extreme hose flexibility where tight routing is a challenge. The lightweight, Greek corrugated hose construction provides an economical alternative to expensive made-to-order formed hose. Series 7399 high temperature flexible hose pipe is crush resistant and kink resistant for unimpeded flow and offers superior flexibility for easy handling and installer/operator convenience. The cover is specially formulated to resist cracking and hardening caused by high temperature engine compartments, and is resistant to abrasion and oil for maximum performance.

Markets:

• General Industrial

• Transportation

Features/Benefits:

• Tube: Black CPE for extreme hot oil resistance to 302°F.

• Reinforcement: Multiple textile braids for strength and kink resistance, and a wire helix for full suction capability and a path to conduct a static charge to ground.

• Cover: Black hydrogenated nitrile for extreme heat resistance, oil resistance and durability.

• Couplings: Qualified with steel crimp couplings for a durable, safe and secure connection.

• Lengths: Available in optional 25-foot coils or 300-foot reels for application/inventory efficiency and versatility.

Applications:

• Hot oil

• Drain lines

• Non-SAE power steering return lines

• Oil suction/return lines

• Buses

• Mobile/off-road equipment

• General transfer

Safety/Technical:

• Design Factor: 4:1

• Refer to CrimpSource® for current crimp specifications

Warnings:

• Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to NAHAD Industrial Hose Assembly Guidelines.
