PR103S12 - Direct Acting Pressure Reducing Relieving Valves

Name: PR103S12 - Direct Acting Pressure Reducing Relieving Valves
SKU: PR103S12
Price: 59.38 USD
Availability: InStock

Parker’s direct acting reducing & relieving valves are used in intermittent duty applications where specific functions require reduced and regulated pressure. Capable of flows up to 56 lpm (13 gpm) and pressures up to 420 bar (6000 psi).

Manufacturer: Parker

Availability:

14 in stock

Olivette, MO

Partner Available:

44 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU PR103S12

$59.38/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Pressure Control Range	570-1200 PSI, 39.3-83 BAR
Maximum Inlet Pressure Rating	3000 PSI, 210 BAR	Seal Material	D-Ring (Standard)
Flow Rate	15 GAL/MIN, 56 L/MIN	Adjustment Mechanism	Screw
Mounting Type	Screw in cartridge valve	Minimum Operating Temperature	-37 °C
Pressure Control Sensitivity	165 per turn psi	Maximum Pressure Differential	69 bar
Flow Rate	15 Gal/min	Operating Temperature	-37 to +93 °C
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Pressure Control Range	570-1200 psi
Configuration	Pressure Reducing/Relieving	Maximum Tank Pressure	1800 psi
Function	Direct Acting	Adjustment Mechanism	Screw
Cavity Size	C10-3	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Flow Rate	15 Gal/min	Maximum Inlet Pressure Rating	3000 psi
Maximum Operating Temperature	+200 °F	Seal Material	D-ring (Standard)
Valve Material	All parts steel. All operating parts hardened steel.	Maximum Pressure Setting	83 bar
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Actuation Type	Pressure Sensing
Body Material	N/A	Weight	0.5 lb
Maximum Operating Pressure	3000 psi	Standard Setting Pressure	41.4 bar
Division	Hydraulic Systems Division	Installation Torque	37-41 lb-ft
Operation Type	Automatic	Maximum Drain Flow Rate	0.12 L/min

Customers who bought this item also bought

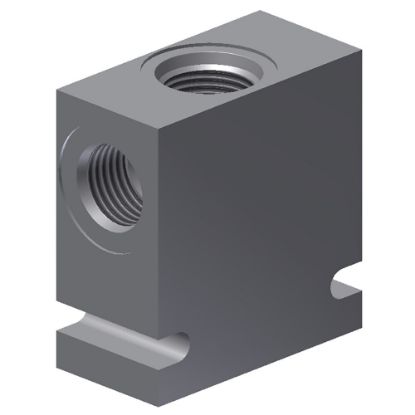

B10-3-8T - Standard Bodies
