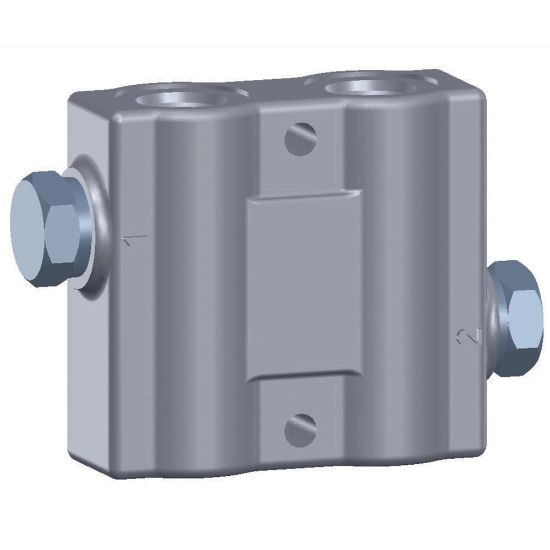

DXV-75-2000 - Direct Acting Crossover Relief - DXV Series

Parker’s DXV Crossover Relief Valve is a fast, direct acting design that provides pressure overload protection for an actuator where the relieved flow is 10 GPM or less.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	Backordered

SKU DXV-75-2000

$313.32/each

Products specifications

Attribute name	Attribute value
UOM	EA	Pressure Relief Setting (psi)	1800-2000
Port Size	3/4" NPT	Adjustment Type	Shim Adjustable
Mounting Type	In-Line	Pressure Control Range	1800-2000 psi
Minimum Operating Temperature	-40 °F	Weight	4 lb
Maximum Operating Pressure	2000 psi	Body Material	High Strength Cast Iron
Actuation Type	Hydraulic Pressure	Division	Hydraulic Valve Systems Division
Maximum Flow Rate	10 Gal/min	Maximum Operating Temperature	+200 °F
For Fluid Type	Hydraulic Oil	Connection Type	NPT
Seal Material	Nitrile	Connection Size	3/4"
