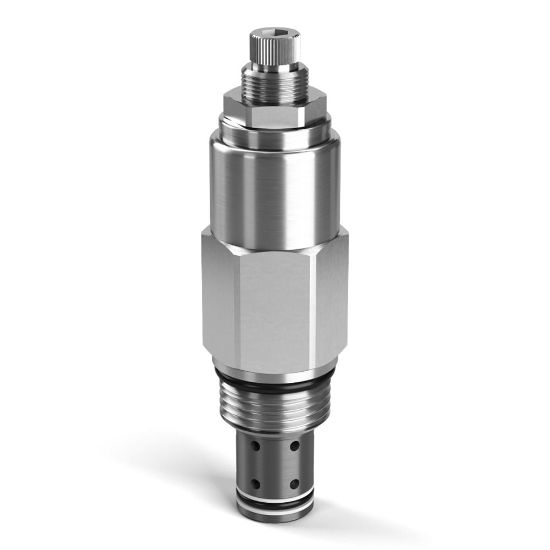

XR101K30 - Direct Acting Cross-Over Relief Valves

Cross-Over Relief cartridge valves provide pressure protection to hydraulic motors, cylinders and rotary actuators up to 120 lpm (32 gpm) and 350 bar (5000 psi). Available in single or dual cartridge, in-line, manifold, or motor mount configurations.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU XR101K30

$221.63/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Adjustment Mechanism	Knob	Mounting Type	Screw in cartridge valve
Cracking Pressure	N/A	Flow Rate	16 GAL/MIN, 60 L/MIN
Standard Setting Pressure	2500 PSI, 172 BAR	Pressure Control Range	1500-3000 PSI, 103-210 BAR
Maximum Inlet Pressure Rating	3500 PSI, 245 BAR	Division	Hydraulic Systems Division
Operating Temperature	-34 to +121 °C	Flow Rate	60 L/min
Actuation Type	Pressure Sensing	Maximum Flow Rate	60 L/min
Maximum Operating Pressure	245 bar	Maximum Operating Temperature	+250 °F
Minimum Operating Temperature	-30 °F	Body Material	N/A
Seal Material	Nitrile	Weight	0.26 kg
Mounting Type	Screw in cartridge valve	Operation Type	Automatic
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Configuration	Dual Cross-Over Relief
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Function	Bi-directional
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Port Thread Size	N/A
Leak Rate	0.66 @ 75% Crack Pressure cm3/min	Cavity Size	C10-2
Valve Material	All parts steel. All operating parts hardened steel	Installation Torque	22 Nm
Maximum Inlet Pressure Rating	3500 psi	Adjustment Mechanism	Knob
Cracking Pressure	N/A psi	Maximum Pressure Setting	207 bar
Reseat Pressure	80% of pressure setting	Maximum Tank Pressure	245 bar
Pressure Control Range	1500-3000 psi	Standard Setting Pressure	2500 psi
Pressure Control Sensitivity	29 per turn bar
