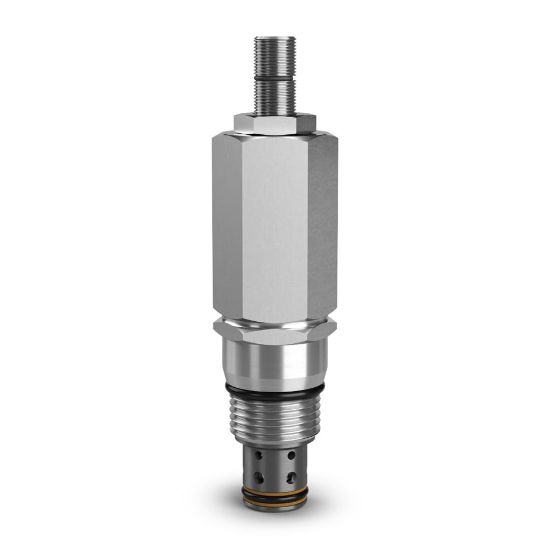

A04J2MZN - Direct Acting Cross-Over Relief Valves

Cross-Over Relief cartridge valves provide pressure protection to hydraulic motors, cylinders and rotary actuators up to 120 lpm (32 gpm) and 350 bar (5000 psi). Available in single or dual cartridge, in-line, manifold, or motor mount configurations.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 203 days
Partner Available:	Backordered

SKU A04J2MZN

$243.46/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Adjustment Mechanism	Screw	Flow Rate	32 GAL/MIN, 120 L/MIN
Pressure Control Range	144-5000 PSI, 10-350 BAR	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Mounting Type	Screw in cartridge valve	Cracking Pressure	N/A
Standard Setting Pressure	2900 PSI, 200 BAR	Actuation Type	Pressure Sensing
Operating Temperature	-30 to 250 °F	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Filter Efficiency Rating	SAE Class 4	Maximum Operating Pressure	350 bar
Configuration	Dual Cross-over Relief	Reseat Pressure	n/a
Body Material	n/a	Installation Torque	37 lb-ft
Division	Mobile Hydraulic Systems Division Europe	Operation Type	Automatic
Weight	0.64 lb	Port Thread Size	n/a
Cavity Size	C10-2	Adjustment Mechanism	Screw
Minimum Operating Temperature	-30 °F	Mounting Type	Screw-in Cartridge
Pressure Control Range	10 to 350 bar	Flow Rate	32 Gal/min
Pressure Control Sensitivity	493	Function	Bi-directional
Maximum Tank Pressure	350 bar	Seal Material	Nitrile
Maximum Inlet Pressure Rating	350 bar	Cracking Pressure	n/a
Standard Setting Pressure	200 bar	Valve Material	Hardened Steel
For Fluid Type	Mineral-based Hydraulic Fluids	Maximum Operating Temperature	250 °F
Maximum Pressure Setting	5000 psi	Leak Rate	10
Maximum Flow Rate	120 L/min
