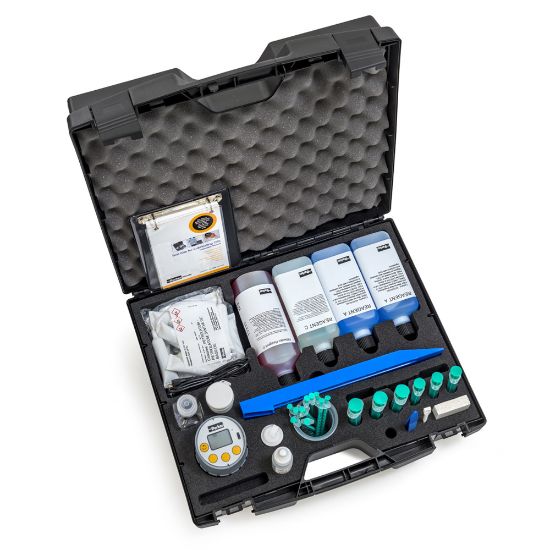

FG-K3-020-KW - DIGI Plus Oil Test Kits

The DIGI+ range of test kits enable rapid on-site monioring of critical oil parameters in remote and marine applications, including base number, acid number, viscosity comparison, plus water, salt and insoluble contamination.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	Backordered

SKU FG-K3-020-KW

$339.91/each

Products specifications

Attribute name	Attribute value
UOM	EA	Options	Viscosity (Lube Oil)
Function	Viscosity	Product Type	Condition Monitoring
Operating Pressure	n/a. Manually fed samples	Technology	Filtration
Wetted Material	FKM and glass reinforced plastic	For Fluid Type	Mineral and synthetic fluids compatible: Lubricant oils, hydraulic oils, distillate fuels, and Bio-based fuels.
Accessories Included	Carry case, syringes, reagents, goggles, instructions, 50 tests.	Size	76 x 112 mm (Diameter x Height)
Division	Hydraulic & Industrial Process Filtration Division EMEA	Connection Type	n/a. Manually fed samples
Accuracy	Water-in-oil: 0.1% up to 1%, then ± 1% above 1%<br/>Base number: ± 5 BN or 10 % (whichever is greater)	Sensing Range	Water-in-oil: 0.02% to 1%, 0.1% to 10%, 0.1% to 20%, 200 ppm to 10000 ppm, 100 ppm to 300 ppm<br/>Base number: 1 to 150 BN
Features	Fast and effective onsite/Onboard test to measure water-in-oil and/or BN (base number)	Sensor Connection	Micro-USB
Weight	0.2	Sensing Method	Electrical sense element
Communication Interface	Display with backlight and keypad. Computer interface application.	Ingress Protection Rating	IP44
Division	Hydraulic & Industrial Process Filtration Division EMEA	Industry	Transportation
Electrical Requirements	Internal USB rechargeable battery (micro-USB: 5 V 100 mA minimum)	Cycle Time	Water-in-oil: 180 seconds<br/>Base number: 120 seconds
Signal Output	Display computer measurement memory download and setup interface	Brand	Parker
Operating Temperature	10 to 45 °C Ambient	Flow Rate	n/a. Manually fed samples
