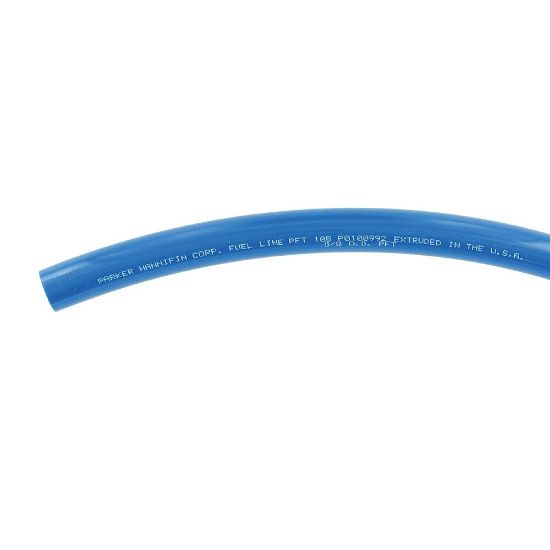

PFT-8B-BLU-500-FL - Diesel Fuel Tubing

Parker's Nylon Diesel Fuel Tubing - HTFL & PFT diesel fuel line tubing is heat and light stabilized, quality controlled and pressure tested for superior performance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	306 in stock

SKU PFT-8B-BLU-500-FL

$3.92/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Order Size	1/2
Product Style	PFT - Temp. up to 200˚F (93˚C)	Minimum Burst Pressure	65.5 bar
Specifications Met	n/a	Application	Transportation
Maximum Operating Pressure	10.3 bar	Color	Blue
Tube Inside Diameter	0.376 inch	Product Type	Standard Temp. up to 200˚F (93˚C)
Minimum Operating Temperature	-40 °F	Tube Outside Diameter	0.5 inch
Cover Material	n/a	Minimum Bend Radius	51 mm
Division	Parflex Division	Size	-8
Length per Package	500 ft	Maximum Operating Temperature	93 °C
Compatible Fitting	Prestomatic	Tube Material	Polyamide (PA)
Media	Fuels (Diesel)	Weight	0.058 kg/m
Cover Color	n/a
