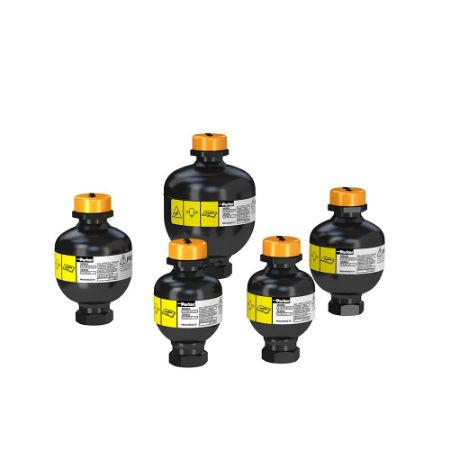

Diaphragm Accumulators - AD Series - (Americas)
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker is the leading manufacturer of accumulators in the world. Parker’s broad standard offering includes the full range of piston, bladder and diaphragm accumulators. For your convenience, Parker offers the premier accumulator sizing technology with its inPHorm Accumulator Sizing and Selection Software.
Markets:
• Aerial Lift Equipment
• Agriculture Machinery
• Construction Equipment
• Forestry Equipment
• Mining Equipment
• Hybrid Vehicle Systems
• Material Handling Equipment
• Transportation
• Turf Equipment
• Vocational Equipment and Special Use Work Vehicles
• Hydraulic Power Units (HPU)
• Lubrication Systems
• Plastics Machinery
• Injection Molding Equipment
• Rubber Molding Equipment
Features/Benefits:
• Operating Pressures up to 250 bar (3625 psi)
• Capacities from .075 to 2.80 Liters (5 to 170 cu in)
• Compact and Lightweight
• Welded, Non-Repairable Design offers great tolerance to environmental contamination
• Hydrin Diaphragms
• US and Metric Gas Valve options
• Affordable design
• Good response characteristics
• Works well with water and low lubricity fluids
Applications:
• Shock Absorption
• Auxiliary Power
• Supplemental Flow
• Noise Attenuation
• Energy Conservation
• Thermal Expansion
• Emergency Power
• Leakage Compensation
Read More...Markets:
• Aerial Lift Equipment
• Agriculture Machinery
• Construction Equipment
• Forestry Equipment
• Mining Equipment
• Hybrid Vehicle Systems
• Material Handling Equipment
• Transportation
• Turf Equipment
• Vocational Equipment and Special Use Work Vehicles
• Hydraulic Power Units (HPU)
• Lubrication Systems
• Plastics Machinery
• Injection Molding Equipment
• Rubber Molding Equipment
Features/Benefits:
• Operating Pressures up to 250 bar (3625 psi)
• Capacities from .075 to 2.80 Liters (5 to 170 cu in)
• Compact and Lightweight
• Welded, Non-Repairable Design offers great tolerance to environmental contamination
• Hydrin Diaphragms
• US and Metric Gas Valve options
• Affordable design
• Good response characteristics
• Works well with water and low lubricity fluids
Applications:
• Shock Absorption
• Auxiliary Power
• Supplemental Flow
• Noise Attenuation
• Energy Conservation
• Thermal Expansion
• Emergency Power
• Leakage Compensation
| Action | SKU | Availability | Partner Available | Price | UOM | Valve Type | Nominal Volume (l) | Body Material | Compression Ratio | Division | Port Type | Gas Volume | Diameter | Specifications Met | Maximum Operating Pressure | Operating Temperature | Weight | Diaphragm Material | Repairable | Maximum Flow Rate | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AD007A25T9A1 | Backordered | Backordered | $392.60/each | EA | M28x1.5 Metric Gas Valve | 0.07 l | High Strength Alloy Steel | 8:1 | Accumulator and Cooler Division | SAE #6 (9/16-18 UNF) Female | 5 inch3 | 2.52 inch | Consult Factory | 3625 psi | -40 to 80 °C | 1.8 lbs | Hydrin | Non-Repairable | 40 L/min | 4.37 inch | |
| AD007B25T9A1 | Backordered | Backordered | $563.85/each | EA | US Style Gas Valve (ISO 4570-8VI) | 0.07 l | High Strength Alloy Steel | 8:1 | Accumulator and Cooler Division | SAE #6 (9/16-18 UNF) Female | 5 inch3 | 2.52 inch | Consult Factory | 250 bar | -40 to 80 °C | 1.8 lbs | Hydrin | Non-Repairable | 40 L/min | 111 mm | |
| AD016A25T9A1 | Backordered | Backordered | $449.70/each | EA | M28x1.5 Metric Gas Valve | 0.16 l | High Strength Alloy Steel | 8:1 | Accumulator and Cooler Division | SAE #6 (9/16-18 UNF) Female | 10 inch3 | 75 mm | Consult Factory | 3625 psi | -40 to 80 °C | 2.2 lbs | Hydrin | Non-Repairable | 11 Gal/min | 4.72 inch | |
| AD016B25T9A1 | Backordered | Backordered | $620.95/each | EA | US Style Gas Valve (ISO 4570-8VI) | 0.16 l | High Strength Alloy Steel | 8:1 | Accumulator and Cooler Division | SAE #6 (9/16-18 UNF) Female | 0.16 L | 75 mm | Consult Factory | 3625 psi | -40 to 80 °C | 1 kg | Hydrin | Non-Repairable | 11 Gal/min | 4.72 inch | |
| AD032A21T9A1 | 1 Limited Stock | Backordered | $497.30/each | EA | M28x1.5 Metric Gas Valve | 0.32 l | High Strength Alloy Steel | 8:1 | Accumulator and Cooler Division | SAE #8 (3/4-16 UNF) Female | 20 inch3 | 3.74 inch | Consult Factory | 3000 psi | -40 to 176 °F | 4 lbs | Hydrin | Non-Repairable | 100 L/min | 5.55 inch | |
| AD032B21T9A1 | Backordered | Backordered | $668.60/each | EA | US Style Gas Valve (ISO 4570-8VI) | 0.32 l | High Strength Alloy Steel | 8:1 | Accumulator and Cooler Division | SAE #8 (3/4-16 UNF) Female | 20 inch3 | 95 mm | Consult Factory | 3000 psi | -40 to 176 °F | 1.8 kg | Hydrin | Non-Repairable | 26 Gal/min | 5.55 inch | |
| AD050A21T9A1 | Backordered | Backordered | $572.25/each | EA | M28x1.5 Metric Gas Valve | 0.50 l | High Strength Alloy Steel | 8:1 | Accumulator and Cooler Division | SAE #8 (3/4-16 UNF) Female | 30 inch3 | 4.20 inch | Consult Factory | 210 bar | -40 to 80 °C | 2.1 kg | Hydrin | Non-Repairable | 100 L/min | 5.94 inch | |
| AD050B21T9A1 | Backordered | Backordered | $743.55/each | EA | US Style Gas Valve (ISO 4570-8VI) | 0.50 l | High Strength Alloy Steel | 8:1 | Accumulator and Cooler Division | SAE #8 (3/4-16 UNF) Female | 0.5 | 107 | Consult Factory | 210 | -40 to 80 | 2.1 | Hydrin | Non-Repairable | 100 | 151 | |
| AD075A25T9A1 | Backordered | Backordered | $734.00/each | EA | M28x1.5 Metric Gas Valve | 0.75 l | High Strength Alloy Steel | 8:1 | Accumulator and Cooler Division | SAE #8 (3/4-16 UNF) Female | 45 inch3 | 4.87 inch | Consult Factory | 250 bar | -40 to 80 °C | 6.6 lbs | Hydrin | Non-Repairable | 100 L/min | 169 mm | |
| AD075B25T9A1 | Backordered | Backordered | $905.35/each | EA | US Style Gas Valve (ISO 4570-8VI) | 0.75 l | High Strength Alloy Steel | 8:1 | Accumulator and Cooler Division | SAE #8 (3/4-16 UNF) Female | 0.75 | 124 | Consult Factory | 250 | -40 to 80 | 3.0 | Hydrin | Non-Repairable | 100 | 169 | |
| AD100A21T9A1 | Backordered | Backordered | $938.60/each | EA | M28x1.5 Metric Gas Valve | 1.00 l | High Strength Alloy Steel | 8:1 | Accumulator and Cooler Division | SAE #8 (3/4-16 UNF) Female | 1 L | 5.36 inch | Consult Factory | 210 bar | -40 to 80 °C | 8.8 lbs | Hydrin | Non-Repairable | 26 Gal/min | 7.09 inch | |
| AD100B21T9A1 | Backordered | Backordered | $1,109.95/each | EA | US Style Gas Valve (ISO 4570-8VI) | 1.00 l | High Strength Alloy Steel | 8:1 | Accumulator and Cooler Division | SAE #8 (3/4-16 UNF) Female | 1 L | 5.36 inch | Consult Factory | 210 bar | -40 to 80 °C | 8.8 lbs | Hydrin | Non-Repairable | 26 Gal/min | 180 mm | |
| AD140A25T9A1 | Backordered | Backordered | $1,104.00/each | EA | M28x1.5 Metric Gas Valve | 1.40 l | High Strength Alloy Steel | 8:1 | Accumulator and Cooler Division | SAE #8 (3/4-16 UNF) Female | 85 inch3 | 6.10 inch | CE (for others consult factory) | 250 bar | -40 to 80 °C | 6 kg | Hydrin | Non-Repairable | 26 Gal/min | 7.80 inch | |
| AD140B25T9A1 | Backordered | Backordered | $1,275.30/each | EA | US Style Gas Valve (ISO 4570-8VI) | 1.40 l | High Strength Alloy Steel | 8:1 | Accumulator and Cooler Division | SAE #8 (3/4-16 UNF) Female | 1.4 | 155 | CE (for others consult factory) | 250 | -40 to 80 | 6 | Hydrin | Non-Repairable | 100 | 198 | |
| AD200A25T9A1 | Backordered | Backordered | $1,403.80/each | EA | M28x1.5 Metric Gas Valve | 2.00 l | High Strength Alloy Steel | 4:1 | Accumulator and Cooler Division | SAE #8 (3/4-16 UNF) Female | 2 L | 6.10 inch | CE (for others consult factory) | 250 bar | -40 to 176 °F | 7.5 kg | Hydrin | Non-Repairable | 160 L/min | 9.88 inch | |
| AD200B25T9A1 | Backordered | Backordered | $1,575.05/each | EA | US Style Gas Valve (ISO 4570-8VI) | 2.00 l | High Strength Alloy Steel | 4:1 | Accumulator and Cooler Division | SAE #8 (3/4-16 UNF) Female | 120 inch3 | 155 mm | CE (for others consult factory) | 3625 psi | -40 to 80 °C | 17 lbs | Hydrin | Non-Repairable | 42 Gal/min | 9.88 inch | |
| AD280A25T9A1 | Backordered | Backordered | $1,631.00/each | EA | M28x1.5 Metric Gas Valve | 2.80 l | High Strength Alloy Steel | 4:1 | Accumulator and Cooler Division | SAE #8 (3/4-16 UNF) Female | 2.8 | 174 | CE (for others consult factory) | 250 | -40 to 80 | 10.0 | Hydrin | Non-Repairable | 160 | 268 | |
| AD280B25T9A1 | Backordered | Backordered | $1,802.35/each | EA | US Style Gas Valve (ISO 4570-8VI) | 2.80 l | High Strength Alloy Steel | 4:1 | Accumulator and Cooler Division | SAE #8 (3/4-16 UNF) Female | 2.8 L | 6.85 inch | CE (for others consult factory) | 250 bar | -40 to 176 °F | 10.0 kg | Hydrin | Non-Repairable | 160 L/min | 268 mm |
