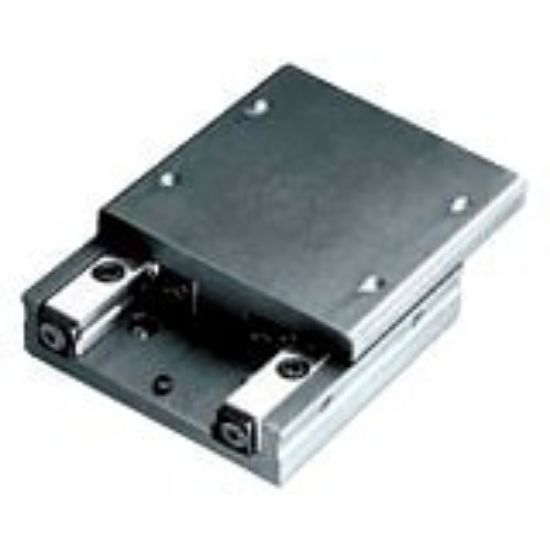

SE050A-175 - Cross Roller Bearing Guided, Standard Manual Linear Slides -SE Series

The SE-series of crossed roller bearing guided manual linear slides offer travels of up to 11.8", a high payload capacity of up to 2738 lbs, plus very good smoothness, very low friction and a very good straightness and flatness accuracy

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 3 days
Partner Available:	Backordered

SKU SE050A-175

Products specifications

Attribute name	Attribute value
UOM	EA	Width (mm)	50.000
Travel (mm)	150	Payload (lbs)	614
Product Type	Linear Slide	Bearing Type	Cross Roller
Number of Axes	1	Product Series	SE Series
Load Capacity	614 lb	Mounting Option	Metric Model
Width	50 mm	Division	Electronic Motion and Controls Division
Maximum Travel	5.91 inch

Product resources

Literature and Reference Materials

Manually Driven Positioning Slides and Stages - Catalog (Includes dimensions and specs) (PDF)
SE Series Manual Linear Slides - User Guide (PDF)
Manual Products Engineering Reference (PDF)
