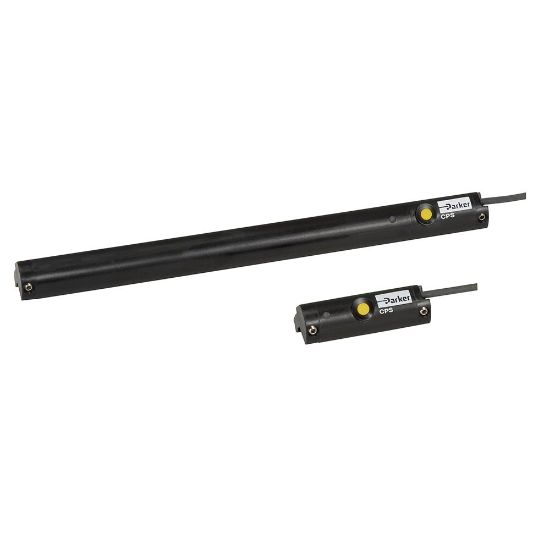

P8SAGACHA - CPS (Continuous Position Sensor) Actuator Accessories - P8S Series

P8S Continuous Position Sensors enable contactless monitoring of cylinder strokes from 32mm to 256mm. Continuous supplied data via analog output or IO-Link is ideally suited for quality and process control functions.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU P8SAGACHA

$304.77/each

Products specifications

Attribute name	Attribute value
UOM	EA	Output Type	Analog
Sensing Range (mm)	0-32	Repeatability	0.06 % Full Scale Range (>= 0.1 mm)
Ingress Protection Rating	IP67 (according to EN 60529)	Connection Type	M8 Analog
Division	Pneumatic Division	Sensing Range	32 to 256 mm depending on Type.
Maximum Ambient Temperature	70	Resolution	0.03 % Full Stroke. Full Scale Range (max >=0.05 mm)
Output Voltage	0 to 10	LED Color	Yellow (Analog)
Overall Length	0 to 32	Minimum Ambient Temperature	-20
Signal Output	Analog	Vibration Resistance	30 g 11 ms / 10 … 55 Hz, 1 mm
Linearity	0.3	Cylinder Type	Profile with T-slot
Product Series	Pneumatic Cylinder Accessories	Specifications Met	CE
Output Current Rating	4 to 20	Technology	Pneumatics
Screw Material	Stainless Steel	Cable Type	PUR (Polyurethane) Cable length 0.3m
Bore Diameter	n/a	Product Type	Sensor Component
Installation	Drop-in fixed by allen key 2.5 mm	Input Voltage	15 to 30
Housing Material	Plastic Polyamid PA12
