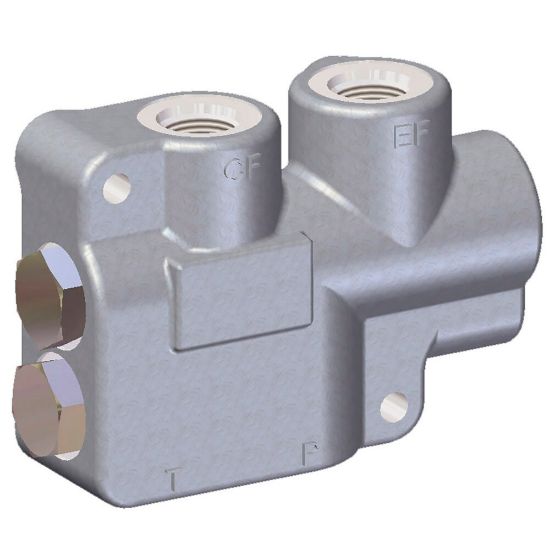

CFD-10-2 - Constant Volume Priority Flow Control Valve – CFD Series

Parker’s CFD Controlled Flow/Priority Type Flow Divider is designed for providing a fixed 1-5 GPM controlled flow source for power steering systems and other applications where two separate hydraulic power circuits are to be served from a single pump.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	Backordered

SKU CFD-10-2

$508.20/each

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate (gpm)	2
Connection Size	SAE 8 / SAE 10	Pressure Relief Valve	Standard
Connection Size	8 mm	Function	Flow Control
Minimum Operating Temperature	-40 °F	Configuration	Inline
Flow Rate	2 Gal/min	Actuation Type	Hydraulic Pressure
Weight	3.6 kg	Maximum Operating Pressure	177 bar
Body Material	Cast Iron	Connection Type	SAE
Division	Hydraulic Valve Systems Division	Maximum Flow Rate	n/a
Maximum Operating Temperature	200 °F	Seal Material	n/a
