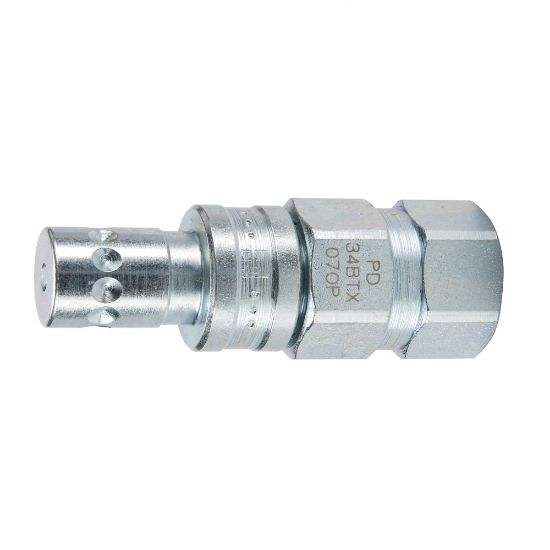

PDP34BTX - Connect Under Pressure, Test Port, Diagnostic Quick Couplings - PDP Series

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	5 in stock

SKU PDP34BTX

$104.59/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	Triple-Lok
Connection Thread Size (inch)	na	Tube Size (inch)	1/4
Coupling Half	Male Nipple	Plating Type	Zinc with clear trivalent chromate
Hex Size	0.69 inch	Minimum Operating Temperature	-40 °F
Seal Material	Nitrile	Body Size	1/8 inch
Maximum Operating Temperature	250 °F	Product Type	Push to connect
Division	Quick Coupling Division	Valve Type	Ball
Application	Diagnostic	Maximum Operating Pressure	6000 psi
Body Material	Steel
