*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

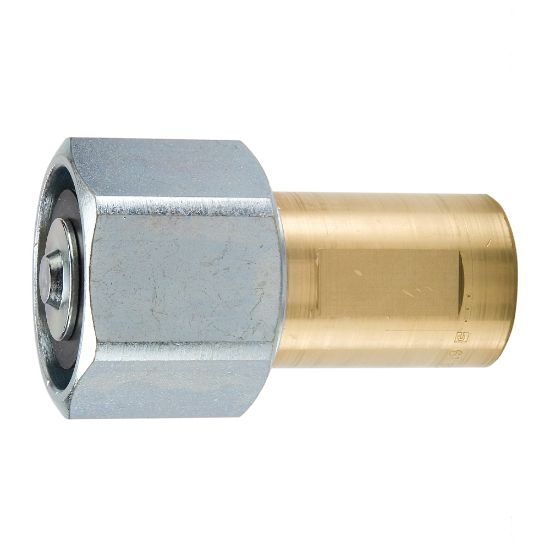

6135-08 - Connect Under Pressure, High Flow Quick Couplings - 6100 Series

Parker's low spill thread to connect couplers and nipples, wing nut or hex nut style, are ideal for use in applications where a high flow flush valve and connect under pressure is needed.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	11 in stock

SKU 6135-08

$176.45/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Female Coupler
Connection Thread Size (inch)	1/2 - 14	Body Size	3/4 Inch
Sleeve Type	Hex nut	Valve Type	Flat Face
Division	Quick Coupling Division	Connection Type	Female NPTF
Maximum Operating Temperature	250 °F	Seal Material	Nitrile
Product Type	Thread to Connect	Hex Size	1.16 inch
Plating Type	Zinc with Clear Trivalent Chromate on Steel Sleeve	Minimum Operating Temperature	-40 °F
Hex Size 2	1.75 inch	Application	Hydraulics
Flow Rate	12 Gal/min	Dimensional Weight	0.31160071942446044 lb
Body Material	Brass	Maximum Operating Pressure	3000 psi

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
