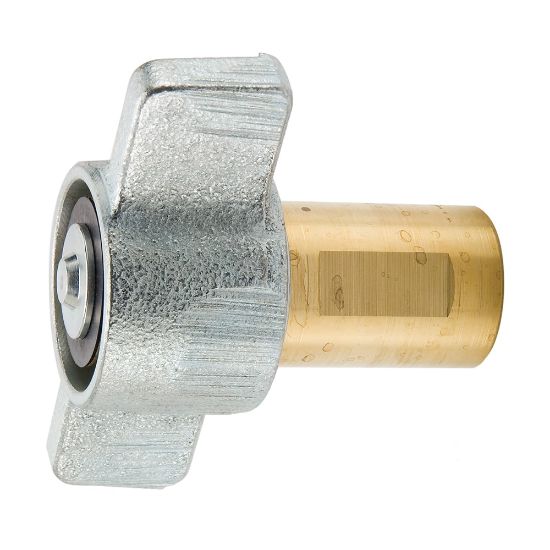

6125-12 - Connect Under Pressure, High Flow Quick Couplings - 6100 Series

Name: 6125-12 - Connect Under Pressure, High Flow Quick Couplings - 6100 Series
SKU: 6125-12
Price: 125.04 USD
Availability: InStock

Parker's low spill thread to connect couplers and nipples, wing nut or hex nut style, are ideal for use in applications where a high flow flush valve and connect under pressure is needed.

Manufacturer: Parker

Availability:

16 in stock

Olivette, MO	4
WICHITA, KS	3
COLUMBIA, MO	2
Kansas City, KS	2
Joplin, MO	2
Peoria, IL	2
Springfield, MO	1

Partner Available:

368 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 6125-12

$125.04/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Female Coupler
Connection Thread Size (inch)	3/4 - 14	Body Size	3/4 Inch
Sleeve Type	Wing nut	Hex Size 2	4.06 inch
Minimum Operating Temperature	-40 °F	Hex Size	1.16 inch
Plating Type	Zinc with Clear Trivalent Chromate on Steel Sleeve	Application	Connect Under Pressure
Dimensional Weight	0.3998800959232614 lb	Flow Rate	28 Gal/min
Body Material	Brass	Maximum Operating Pressure	3000 psi
Valve Type	Flat Face	Connection Type	Female NPTF
Division	Quick Coupling Division	Maximum Operating Temperature	250 °F
Seal Material	Nitrile	Product Type	Thread to Connect

Customers who bought this item also bought

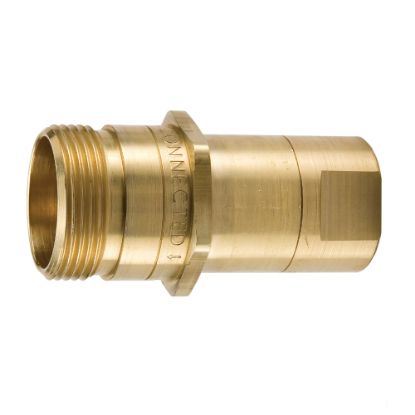

6105-12 - Connect Under Pressure, High Flow Quick Couplings - 6100 Series
