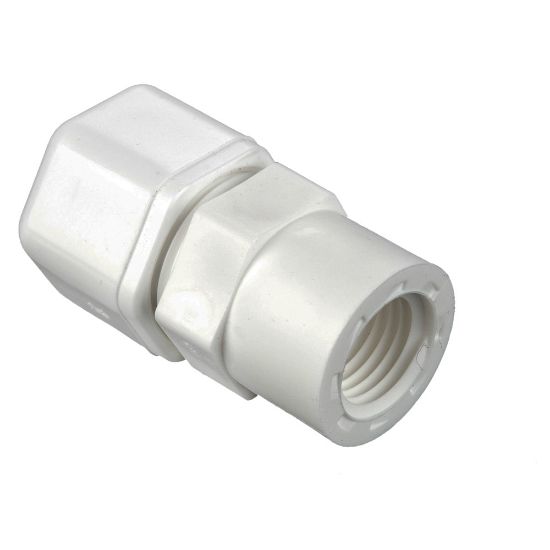

W6FC8 - Compression Style Plastic Fittings, Fast-Tite

Parker's Fast & Tite fittings installs in seconds without tools for a leak proof seal. Fast & Tite meets FDA and NSF-51 requirements for food contact.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 23 days
Partner Available:	Backordered

SKU W6FC8

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Type	Compression
Configuration	Tube to Female Pipe	Body Material	White Polypropylene
Product Style	Connector	Connection 1 Tube Outside Diameter	3/8" (O.D.)
Connection 2 Thread Size	1/2"	Connection 2 Type	NPTF
Division	Fluid System Connectors Division	For Fluid Type	Other Compatible Fluids
Tube Material	Thermoplastic	Seal Material	Nitrile (O-Ring)
Gripping Ring Material	Stainless Steel AISI 302	Maximum Operating Temperature	100 °C
Application	Filtration	Specifications Met	NSF 51
Minimum Operating Temperature	0 °F	Maximum Operating Pressure	150 psi
Body Material	Polypropylene
