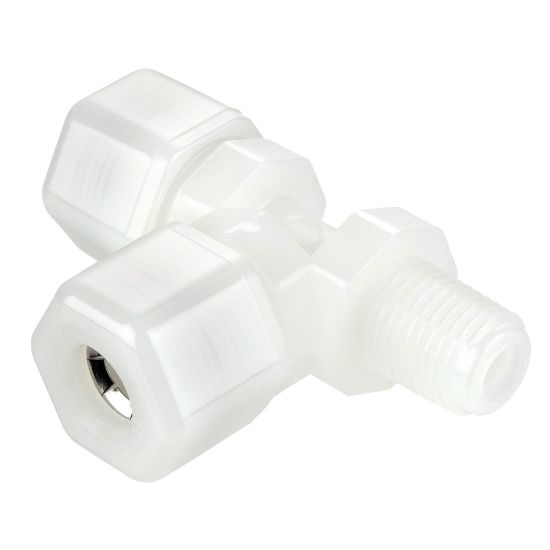

N4MR2 - Compression Style Plastic Fittings, Fast-Tite

Parker's Fast & Tite fittings installs in seconds without tools for a leak proof seal. Fast & Tite meets FDA and NSF-51 requirements for food contact.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	7 in stock

SKU N4MR2

$6.46/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size	1/8"
Connection 1 Type	Compression	Connection 1 Tube Outside Diameter	1/4" (O.D.)
Configuration	Tube to Pipe	Shape	Run Tee - Male
Connection 2 Type	NPTF	Body Material	Nylon
Maximum Operating Pressure	300 psi	Body Material	Nylon
For Fluid Type	Other Compatible Fluids	Maximum Operating Temperature	93 °C
Division	Fluid System Connectors Division	Tube Material	Glass
Gripping Ring Material	Stainless Steel AISI 302	Seal Material	Nitrile (O-Ring)
Application	Dispensing	Specifications Met	NSF 51
Minimum Operating Temperature	-40 °C
