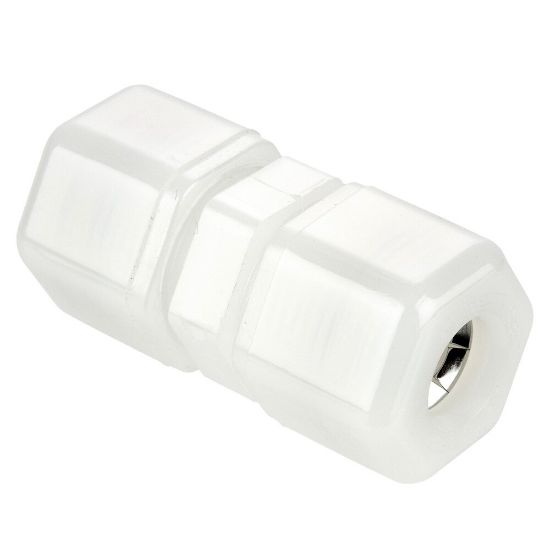

N10UC6 - Compression Style Plastic Fittings, Fast-Tite

Parker's Fast & Tite fittings installs in seconds without tools for a leak proof seal. Fast & Tite meets FDA and NSF-51 requirements for food contact.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 47 days
Partner Available:	23 in stock

SKU N10UC6

$6.25/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Tube Outside Diameter	5/8" (O.D.)
Configuration	Tube to Tube	Connection 1 Type	Compression
Connection 2 Type	Compression	Connection 2 Tube Outside Diameter	3/8" (O.D.)
Shape	Union	Body Material	Nylon
Minimum Operating Temperature	-40 °F	Media	Water, Air, Other Compatible Fluids
O-Ring Material	Nitrile	Specifications Met	FDA, NSF-51
Application	Filtration, Purification, Dispensing	Maximum Operating Pressure	3.5 bar
Body Material	Nylon	Tube Material	Thermoplastic, Glass, Soft Metal
Gripping Ring Material	302 Stainless Steel	Division	Fluid System Connectors Division
Maximum Operating Temperature	200 °F
