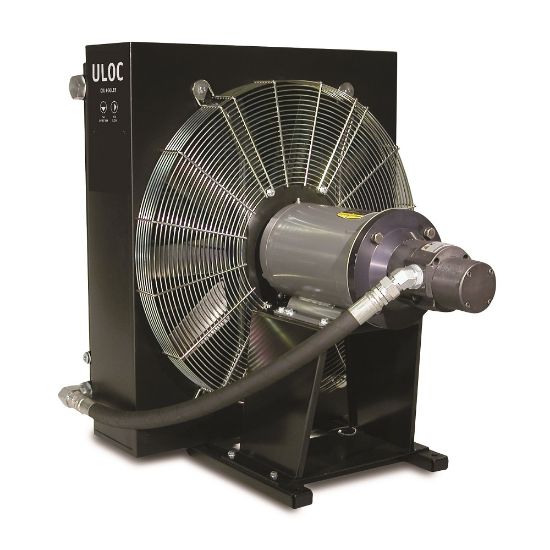

ULOC-007D-M-B-SB - Complete Air Oil Cooler System with AC Motor - ULOC Series - (Americas)

ULOC Series oil coolers offer a compact and durable design that will provide efficient performance and long life. They provide up to 60hp of offline cooling and are suitable for most applications and environments.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU ULOC-007D-M-B-SB

$6,964.40/each

Products specifications

Attribute name	Attribute value
UOM	EA	Motor Type	Three Phase, 190/380V 50 Hz, 208-230/460V 60 Hz
Size	Size 007D	Pump Size	12.7 gpm
Bypass Options	65 psi External Hose Bypass	Division	Accumulator and Cooler Division
Frequency	50/60 Hz	Height	15.6 inch
Width	26.6 inch	For Fluid Type	Phosphate Ester
Input Voltage	190/380	Maximum Fluid Temperature	250 °F
Length	365.8 mm	Motor Type	Three Phase
Port Size	1	Maximum Cooling Capacity	7.8 kW
Noise Level	71 dBA	Flow Rate	12.7 Gal/min
Connection Thread Size	1-5/16"-12 inch	Materials of Construction	Electrostatically Powder-Coated Surface Treatment
Specifications Met	UL, CSA and CE Available on Motor	Motor Power Output Rating	1 HP
Weight	68 lb	Maximum Operating Pressure	300 psi
