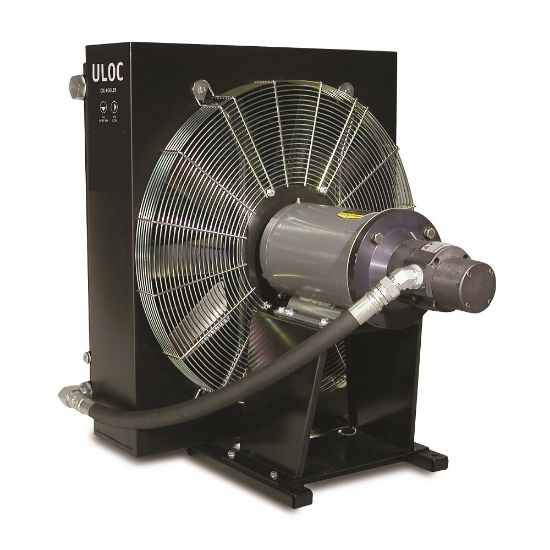

ULOC-007D-M-A-SB - Complete Air Oil Cooler System with AC Motor - ULOC Series - (Americas)

ULOC Series oil coolers offer a compact and durable design that will provide efficient performance and long life. They provide up to 60hp of offline cooling and are suitable for most applications and environments.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU ULOC-007D-M-A-SB

$6,880.70/each

Products specifications

Attribute name	Attribute value
UOM	EA	Pump Size	6.3 gpm
Size	Size 007D	Motor Type	Three Phase, 190/380V 50 Hz, 208-230/460V 60 Hz
Bypass Options	65 psi External Hose Bypass	Maximum Operating Pressure	20.7 bar
Weight	66 lb	Maximum Cooling Capacity	6.4 kW
Height	15.6 inch	Frequency	50/60 Hz
Division	Accumulator and Cooler Division	Width	26.1 inch
For Fluid Type	Oil/Water Emulsion	Length	365.8 mm
Input Voltage	208-230/460	Maximum Fluid Temperature	250 °F
Motor Type	Three Phase	Port Size	1
Connection Thread Size	1-5/16"-12 inch	Materials of Construction	Glass Fiber Reinforced Polypropylene
Noise Level	71 dBA	Flow Rate	23.8 L/min
Motor Power Output Rating	1 HP	Specifications Met	UL, CSA and CE Available on Motor
